Quick Details

• Length:

  6700mm

• Height:

  600mm

• Width:

  2260mm

• Place of Origin:

  Shanghai, China (Mainland)

• Delivery Time:

  0

• OE Experience:

  No

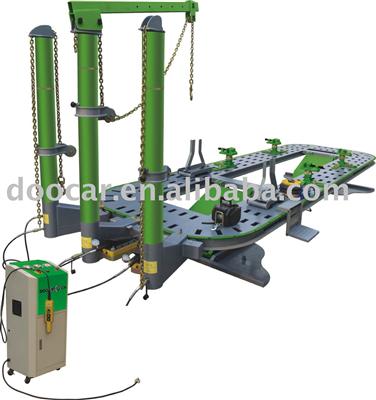

Product Name:Auto collision repair system American style Table Height----600mm

Auto collision repair system American style Table Height----600mm

Application

auto

Product Description:

Table Length----6700mm
Table Width-----2260mm
Table Height----600mm
Max Load------4500kg
Post Max. Tension----15t

 DC-B80

Specifications

Table Length---------------------------6700mm

Table Width-----------------------------2260mm

Table Height------------------------280-1050mm

Diameter of the Post -----------------168mm

Hydraulic Pressure -------------------70MPa

Post Max. Tension --------------------15T

Post Working Rang--------------------360°

Height of the Post----------------------2250mm

Pulling Stroke---------------------------257mm

Pneumatic Pressure --------------0.5-0.8MPa

Max Load--------------------------------4500kg

Total Weight ----------------------------4600kg

Performance Introduction

Doocar B-80 upholds the advanced technology of world-renowned companies as CHIEF, BROW, as well as BLACKHAWK. We also take the actual problems existing during domestic auto repairing works into sensible consideration. This equipment is aiming at Practicability, safety and accuracy. The adaptation of modular design concept as well as professional division of labor, with our great passion and exquisite workmanship, creates Doocars distinguished quality and technology.

1.        Bigger platform, manganese alloy, high density manganese steel makes it durable. Bigger range of lifting (280mm-1050mm) can meet the repair of chassis.

2.        Two posts, 168mm of diameter, 2250mm of height can meet the pulling repair of a variety of high-tensile auto bodies. Patent orientation ratchet can reduce the force loss thus to protect chains and it has a fall-proof equipment.

3.        Main clamps are very convenient to fix and is flexible to adjust. Tooth clamps are very sturdy.

4.        Rich high-tensile pulling clamps and accessories can meet the pulling repair of autos in different shapes.

5.        Three hydraulic systems guarantee strong power and durability.

6.        High-precision measuring system can provide accurate and convenient operation.

7.        Universal data of all kinds of vehicles can meet all the repairing needs.

Configuration

Platform-------------------------------------------------------------1 set

Post -----------------------------------------------------------------3 sets

Upper puller-------------------------------------------------------1 set

Pneumatic pump-------------------------------------------------3 sets

30t high-pressure cylinder-------------------------------------2 sets

15t high-pressure cylinder-------------------------------------2 sets

Hydraulic controller----------------------------------------------1 set

Hydraulic second time lift--------------------------------------1 set

Main clamps-------------------------------------------------------4 sets

Ramps -------------------------------------------------------------1 set

Trolley -------------------------------------------------------------2 sets

Electric winch-----------------------------------------------------1 set

Wheel bracket----------------------------------------------------1 set

High-strength pulling tools---------------------------------30 pieces

High-precision measuring system---------------------------1 set

Tools board--------------------------------------------------------1 set

Tools bag-----------------------------------------------------------1 set

Manual--------------------------------------------------------------1 set
