Quick Details

• Place of Origin:

  Guangdong, China

• Delivery Time:

  0

• Packing:

  Polyfoam

• Delivery Port:

  Guangzhou

• OE Experience:

  No

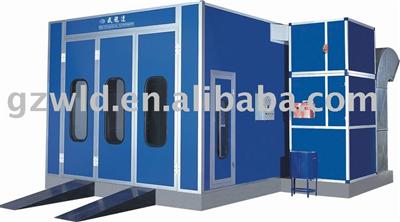

Product Name:Painting Booth--WLD8100 (Standard Type)

Painting Booth--WLD8100 (Standard Type)

Application

Auto

Product Description:

WEILONGDA brand Car Painting Booth,9 years experience in exporting the Auto maintenance equipment to all over the world.

External Size:(mm)

7000x5450x3480

Front Door:(mm)

Aluminum Frame

 3000(w)x2750(h)

 Internal Size:(mm)

6900x3900x2800

Total Power:(kw)

 10

Cabin System

Wallboard

Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness.

Galvanized steel roof panel.

Basement

Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

Air Circulation System

Intake Fan

2x4kw intake fan. BELIMO 20N electric damper.

Air Flow: 24000m3/h. Air Speed: 0.3-0.5m/s.

Air Purification System

Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

Heating System

Burner

Italy Riello G20 diesel burner, 200000Kcal/h.

The heating time 5-7min(20-60.C). Max temperature at 80.C.

Fuel consumption is 4-5kg/vehicle.

Heat Exchanger

Made of stainless steel. The heat exchange rate reaches 85%.

Lighting System

Ceiling light has 24 pcs of 40w lamps. Side light has 16 pcs of 40w lamps. 900 Lux.

Other

Spare parts holding bar at the rear.
