Quick Details

• Place of Origin:

  Shanghai, China (Mainland)

• Packing:

  plywood and carton

• Delivery Port:

  Shanghai

• OE Experience:

  No

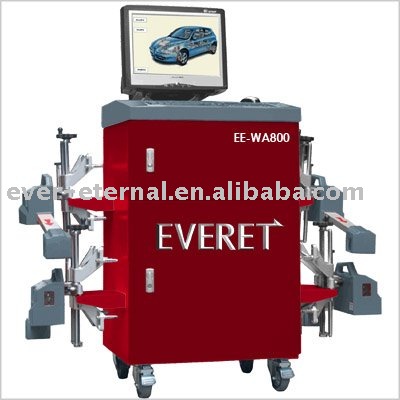

Product Name:Wheel Aligner ( EE-WA800)

Wheel Aligner ( EE-WA800)

Application

Auto

Product Description:

SPECIFICATION
 Measuring parameter Measuring accuracy Measuring range Toe angle ±0.03° ±20° Single toe angle ±0.01° ±10° Camber angle ±0.02° ±15° Trust angle set back ±0.02° ±9° Kingpin caster angle ±0.05° ±18° Kingpin inclination angle ±0.05° ±18° Steering angle ±0.10° ±24°
PACKAGE SIZE   Accessory box 750*600*750MM 50KG Main body 750*650*1000MM 100KG

FEATURES
-Zigbee wireless communication tech-----STABLE ,RELIABLE.
-3600 line CCD aligner and 8-beam  infrared optical sensors----HIGH  PRECISION.
-Inclinometer from VTI of Finland -----HIGH ACCURACY.
-Electronic-level display------EASY to PERFORM.
-The sensor can run no-stop for  20 hours with the 1800mA batteries;
-Caster measurement directly,no turn-table reading need;
-Linux , winxp or vista OS  supported;
-Ten thousand of vehicle data,update and edit conveniently.

With the headquarter in Shanghai and factory in Wujiang, about one hour by car from Shanghai, Ever-Eternal Garage Equipment Co., Ltd. is one of the leading manufacturers of garage and automotive service equipment in China.

Our company dedicates to developing ...[Read More]

Company Profile:

• Main Product:

  (We Sell): post lift,tire changer,wheel balancer,wheel aligner,spray booth,oil equipment,welding machine,class booster,auto fuel injector tester&cleaner,nitrogen tyre inflation system,automatic tyre inflator

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Eastern Europe, Southeast Asia
