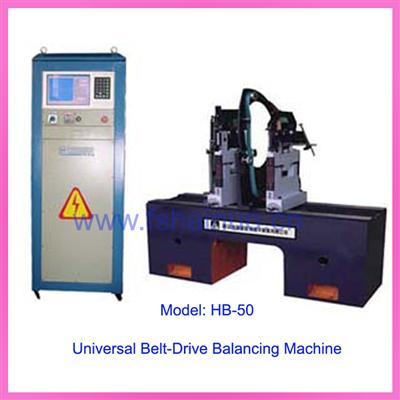

OEM No/Model: HB-50
General Belt-Driver Dynamic Balance Machine
This machine is mainly applied in the fields of automobile repair plant, automobile factory, ventilation system equipment factory ,air blower factory and windly used for spindles of machine tools, ceramic machiner rollers, textile machinery rotor, rubber rollers and also kinds of good-sized and medium-sized motor rollers ect.
Horizontal Machines,Belt-drive:
Model designations:
HorizontalBelt-drive -kg weight capacity
Example: HB-100 =Horizontal machine, Belt-drive, 10~100 Kg weight capacity
Model |
Capacity |
Rotor Ø
max |
Distance between
Supports |
Journal Ø
range |
Balancing Speed rpm |
|
HB-1.6 |
0.16~1.6 |
150 |
30~250 |
3~30 |
400~5,000 |
|
HB-5 |
0.5~5 |
250 |
50~600 |
3~30 |
300~5,000 |
|
HB-16 |
1.6~16 |
400 |
80~600 |
8~40 |
300~5,000 |
|
HB-50 |
5~50 |
850 |
150~1,000 |
8~70 |
300~5,000 |
|
HB-100 |
8~100 |
850 |
150~1,500 |
8~100 |
300~5,000 |
|
HB-160 |
10~160 |
1,080 |
200~1,500/2,400 |
10~180 |
300~2,500 |
|
HB-300 |
16~300 |
1,200 |
200~1,500/2,400 |
10~180 |
300~2,500 |
|
HB-500 |
20~500 |
1,450 |
300~1,500/2,400 |
15~240 |
300~2,500 |
|
HB-1000 |
30~1,000 |
1,600 |
400~3,600 |
20~290 |
300~1,450 |
|
HB-2000 |
50~2,000 |
2,000 |
500~3,600 |
30~350 |
300~1,450 |
|
HB-3500 |
80~3,500 |
2,600 |
700~3,600 |
50~500 |
300~900 |
The more technical parameters are in the following.
Rotor data/Machine type |
HB-50 |
Power supply |
380V 50Hz |
The way of supporting |
Hard bearing |
Display mode |
LCD |
Minimun achieveable residual unbalance(MARU)(g.mm/kg) |
0.5 |
Unbalance reduction ratio(URR)(%) |
90 |
