Quick Details

• Place of Origin:

  China(mainland)

• Delivery Time:

  1 To 3 Days After Receiving The Payment

• Packing:

  in carton

• Delivery Port:

  SHENZHEN

• OE Experience:

  No

Product Name:Bmw Icom ISIS ISID ISTA Diagnostic Tool

Bmw Icom ISIS ISID ISTA Diagnostic Tool

Application

Bmw/ 3 Series(china); Bmw/ 5 Series(china); Bmw/ 1 Series; Bmw/ 6 Series; Bmw/ 7 Series; Bmw/ X3; Bmw/ X5; Bmw/ Z4;

Product Description:

Software are installed in a hard disk.

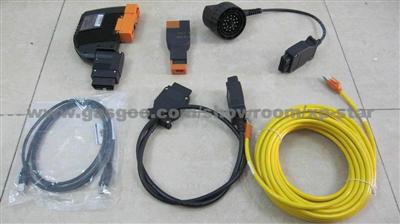

ICOM A--OBD style diagnostic vehicle connector with communication protocols for MOST, K-CAN, D-CAN, KL15/30 detection, ignition failure status, battery status and TD signal for measurements.
ICOM B--OBD style diagnostic vehicle connector with a high speed MOST extension for ICOM A. Uses USB connection to the ICOM A.
ICOM C--Old style 20 pin diagnostic vehicle connector (in engine compartment) to OBD. Service interval reset and engine speed signal.

BMW ISIS/ICOM

3G COMPONENTSIntegrated Service Information Server (ISIS) - ISIS will come as an enclosed server rack for protection. Included are two high performance servers, an Uninterruptible Power Supply (UPS), and a 100 Gigabit switch

In its introductory stage, ISIS will be loaded with the first version of Integrated Service Technical Application (ISTA-formerly known as ANTARES). The first version of ISTA (1.1) will encompass the Repair Manuals currently housed on the TIS website. Look for in-depth ISTA information in a future Service Information. Access to ISTA information can be accomplished via any ISID or properly configured PC with access to the workshop network.

The ultimate configuration of ISIS will also be a central storage point for all Technical Information, diagnostic and programming data updated automatically via JET stream. Updated information is utilized by all workshop equipment.
Integrated Service Information Display (ISID) ISID will eventually replace the GT1 and DISplus. ISID will support the new service processes with numerous functions of diagnosis and later programming. ISID will have a direct data connection with ISIS. It is lighter than a GT1, costs less per unit and is standard with 2 batteries-one of which is housed in the docking station for charging.
Integrated Communication Optical Module (ICOM) ICOM is a high performance vehicle interface that will take the place of the GT1/DISplus diagnostic head and will eventually phase out the OPS/OPPS heads. While it supports the new service processes, it also is integrated to older model series. ICOM will have a direct data connection with ISIS and runs wireless at 100 megabit as opposed to the 2 megabit existing wireless 2G network, for a performance improvement of 50 times. It is lighter than it predecessors and costs less per unit.

Lbhy Automobile Science&Technology Co. Ltd is engaged in automobile diagnostic equipment market.We have a full range of diagnosis equipment such as BMW GT1,GT1 PC,SSS,OPS,BENZ compact3,GM TECH2,VOLVO vida dice,TOYOTA IT2 ,ford ids vcm, Honda GNA600,BMW pixel repair part, nissan consult3 and so ...[Read More]
