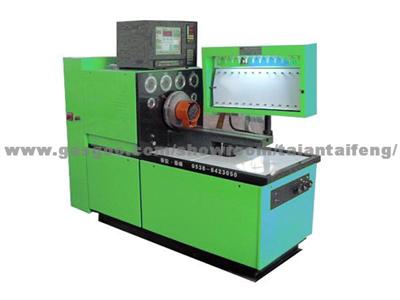

Image for 12 Psbtf-ii Fuel Pump Test Bench

12 Psbtf-ii Fuel Pump Test Bench

Application: Taifeng
Market Type:After Market
Price: Inquiry For It?
Payment Terms: T/T
Samples: Charge
Minimum Order: 1

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Output Power:
7.5-30kw
Height:
125mm
Place of Origin:
Taian
Samples:
Charge
OE Experience:
No

Product Name:12 Psbtf-ii Fuel Pump Test Bench

12 Psbtf-ii Fuel Pump Test Bench

Application

Taifeng

Product Description:

Standard configuration:
1. 15"LCD monitor
2. DOS Operating system
3. Industrial computer motherboard embedded
4. Function parameters of computers and digital tube dual display
1. Position of operation:Two sides
2. Volume of oil tank:60L
3. Temperature stabilization:40
4. Test oil filtering unit:5u
5. DC. Supply: 12/24V
6.Screen and date display:
     SpeedCountsTemperature
     Ahead of angle
7.Mechanical table display:
     Oil pressure and air pressure
8.Feed pressure:
     0-0.4MPa (low),0-4MPa (high)
9.VE1:0-0.16MPa,VE2:0-1.6MPa
10.Air pressure:-0.08-0.3Mpa
11.Adjustable rotation speed
     range 10 grade:0-3000rpm
12.power supply:380V/50Hz
13.Overall dimensions:
     2150*800*1800mm
14.Net weight:900kg
15.Center height:125mm
16.Flywheel inertiasmoment:0.8
17.Output power:7.5-30kw

Features:
1. Testing every cylinder supply oil volume of the different speed
2. Testing every cylinder supply oil time    of the static state
3. Testing variable speed device property
4. Testing electromagnetism Valve of distribute pump
5. Testing pneumatic Variable speed device property
6. Testing pressure boost compensate    device property
7. Testing distribute pump supply
    oil pressure
8. Testing pump pressure
    of distribute pump
9. Testing minus property
  of pneumatic variable speeding device
10.Testing seal up of oil injection pump
11.Testing advance angle
     of advance device
12.Can test oil injection pump: Adjustable and testing all sorts of in line pumps and distribute pump
