Quick Details

• Place of Origin:

  China (Mainland)

• Packing:

  wooden cases or carton with wood pallet.

• Delivery Port:

  Dalian, China

• OE Experience:

  No

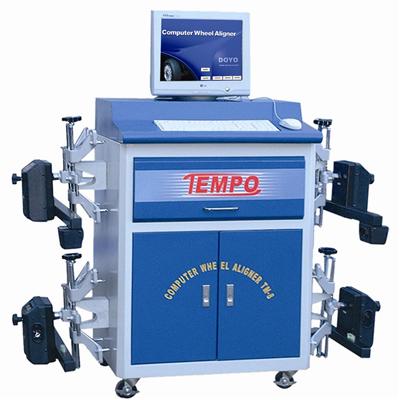

Product Name:Wheel Aligner

Wheel Aligner

Application

Universal

Product Description:

Cables communication, 8 tracks infra-red measuring with 360 degrees.

Main Feature:

- Windows XP operating system with customer management.

-Cables communication between sensor and PC unit make sure the signaltransmitting accuracy, speedy, stability, reliability, eliminating allkinds of interfere and troubles from battery and battery charger.

- 8 tracks infra-red measuring with 360°

-All vehicle data for 4 wheels can be measured simultaneously and frontwheel data or rear wheel data can be displayed individually with zoom.

- 2 points run-out compensation measurement.

- Computer set steering wheel turning angle and no need to use the scale on turntable or electronic turntable.

- Sensors can be switched on by manual or by computer.

- Over 10000 vehicle data are saved in PC and new data update can be easily downloaded at Doyo website.

- Wheel base, track width and axle offset measurement.

- Front Toe curve measurement for Audi/VW.

- Steering wheel angle measurement and difference value measurement between left wheel and right wheel.

-All the results of measurement can be saved in PC and its customerdatabank allows any previous alignment results to be recalled at anytime.

- Self diagnosis and error message display.

- Caster lock and lifting lock.

- Hundreds of 3D animated pictures for adjusting guide and voice attention function.

- Chinese, English and Korean version display available.

Technical Data:

Items

Total Teo

Camber

Caster

Thrust Angle

Set back

Measuring Range:

±40°

±12°

±18°

±8°

±10°

Accuracy

±4'

±2'

±4'

±2'

±4'

Clamp range:  10"-20" or 10"-24"

Power supply:  220V/110, 50/60Hz

Input power:  500W

Console Dimension:   760X650X1150

Dalian Doyo Autotools Co., Ltd. (Doyo) is engaged in the production, research and development, import and export of garage equipment, car decorating and repairing service, and steel construction engineering.

As a member of China Automotive Maintenance Equipment ...[Read More]

Company Profile:

• Main Product:

  (We Sell): Computer wheel aligner,spot welder,car lift,tire changer,wheel balancer

• Business Type:

  Manufacturer

• Current Export Market:

  South America, Eastern Europe, Southeast Asia, Mid East, Africa
