Quick Details

• Voltage:

  DC 10-32v

• Place of Origin:

  China

• Samples:

  Charge

• Delivery Time:

  Within one working day upon receive your payment

• Packing:

  Carton package

• Max. Production Capacity:

  100 sets per week

• Export Ratio:

  91% - 100%

• OE Experience:

  No

Product Name:DENSO Diagnostic Tester-2(DST-2) for TOYOTA

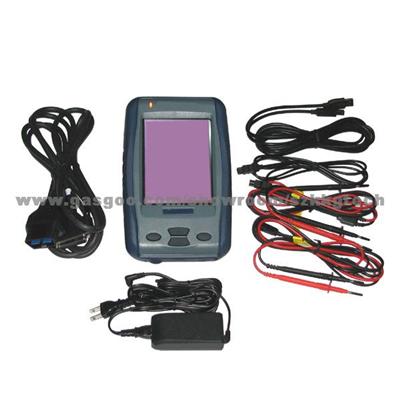

DENSO Diagnostic Tester-2(DST-2) for TOYOTA

Application

Toyota/ PRADO(China); Toyota/ Reiz(China); Toyota/ Corolla(China); Toyota/ Camry(China); Toyota/ Sienna(China); Range Rover Sport, Land Rover, Audi A8, VW Touareg, VWPhaeton, Bentley Continental, Porsche Cayenne, BMW

Product Description:

All type of Toyota(made after 2000) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.

DENSO Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.
CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.

Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation

Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.

Data recording to your PC saved data such as data-list can be downloaded to your pc

Item specification
Dimensions 145mm x 223mm x 71mm
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45
Storage temp: -10~ 60
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH

CHARACTER:
1. Touchscreen & back lighting control
2. Easy & quick
3. User needn't worry about the after service since factory has an open patio for maintenance.

PRODUCT LIST:
1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc

AFTER SERVICE:
1. Guarantee: one year, from the date equipment arrival
2. Upgrade free for one year
3. Upgrade method: CD
