Inverter Spot Welder

    • Application: Acura/TSX(China);Acura/TL...
    • OEM No/Model: P6
    • Market Type:After Market
    • Price: Inquiry For It?
    • Samples: Charge

Quick Details

  • Voltage:

    380- 415v

  • Place of Origin:

    China

  • Samples:

    Charge

  • Delivery Time:

    20days

  • Packing:

    Wooden

  • OE Experience:

    No

Product Name:Inverter Spot Welder

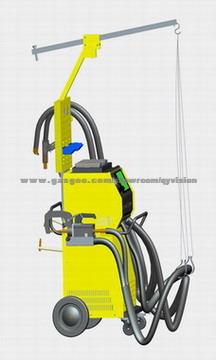

Inverter Spot Welder

Application

Acura/TSX(China);Acura/TL(China);Acura/RSX(China);Acura/RL(China);Acura/MDX Trims(China);Acura/MDX;Acura/RL;Acura/TL;Alfa romeo/156;Aston martin/DB9;audi/A6L(China);audi/A4L(China);audi/A4(China);audi/A1;audi/A8;audi/A5;audi/R8;audi/Q7;audi/Q5;audi/TT;audi/S6;audi/S4;audi/allroad;Beiqi/Luba(China);Beiqi/Qishi(China);Beiqi/Luling(China);Beiqi/Qiling(China);Bentley/Arnage;Bentley/Azure;BMW/3 Series(China)... More

Product Description:

OEM No/Model: P6



The P6 Inverter Spot Welding System Was Designed For The Collision Repair Industry And Is Suitable For Body Shop Applications And Industrial Use. Microprocessor Controlled, Three Phase, Medium Frequency Direct Current Inverter Technology, Electronic Resistance Welding Machine With Water Cooled Clamp, Gives Excellent Results For Repair Work On Materials Such As High Strength Steels, Galvanised Sheet. Feature

Control Panel Use A Large 5x7Monitor To Display Images And Clip Art And Software Is Stored On An Upgradeable Cpu By Internet. Touch Key For Selecting   Wdling Jobs. High Pressure Water Cooled C Clamp

Electrode Pressure Setting In The Display , Versatile MultiFunction Gun , High Output Currents Up To 12 Ka , Reproducible Welding Quality , Senses The Voltage And Out Compensates For Voltage Drops. Two Sided Spot Welding



Single Sided Welding   , Spot Hammer Dent Pulling   , Washer Welding   , Nut And Bolt Welding

Carbon Shrinking   , Contact Shrinking   , Stitch Welding   , Nail Welding   . Moulding Clip Rivet Welding.

Technique Parameter



Input voltage                            380 to 415V  3Phase
Mains Frequency                    50 to 60Hz
Max Absorbed Power(Kw)      21KVA
Rated Power X=50% Kw      9. 5KVA

Power Factor                           0. 8 Cosphi
Inverter Frequency                   2000Hz
Secondary No Load Voltage  4 to 21V
Max Spot- Welding Current  12000A
Max Weld. Thick. On 2 Sheets   3 plus 3 mm
Max Electrodes Power        450daN
Duty Cycle %                         5%
Insulation Class                    H
Protection Degree              IP21
Dimensions LXDXH        130*80*80 cm
Weight                                  220 kg
