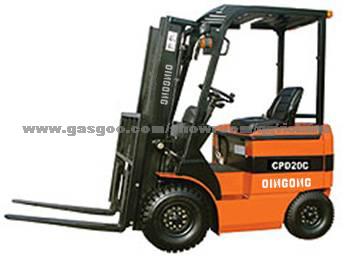

2 Tons Battery Powered Forklift CPD 20C
MODEL |
CPD 20C |
|
Load capacity Kg |
2000 |
|
Load center Mm |
500 |
|
Power type |
Battery |
|
Max. Lifting speeds(with load) mm/ S |
230 |
|
Max. Driving speeds(with without load) km/ H |
12 |
|
Max. Towing(with without load) kN |
8 |
|
Gradeability(with/ Without load) % |
12 |
|
Lifting height mm |
3000 |
|
Free lift Mm |
60 |
|
Tilting angles(forward- Backward) |
6/ 12 |
|
Min. Turning radius mm |
2100 |
|
Min. Right angle aisle width Mm |
2015 |
|
Min. Under- Clearance mm |
100 |
|
Dimensions |
Overall length mm |
2380 |
Overall width mm |
1150 |
|
Overall height(mast lowered) Mm |
2130 |
|
Overall height(mast extend) Mm |
4040 |
|
Overall height to overhead guard Mm |
2130 |
|
Fork overhang mm |
447 |
|
Wheel base mm |
1550 |
|
Tread Tyre |
Front tread mm |
970 |
Front tread mm |
950 |
|
Front tread |
7. 00- 12 |
|
Front tread |
187- 8 |
|
Totel weight kg |
4150 |
|
Motor |
Traction Motor |
XQ- 8 |
Lifting Motor |
XQD- 10 |
|
Battery |
Battery type |
D- 600 |
Battery voltage/ Capacity V/ Ah |
48/ 600 Welcome! 8615165050441 TM: Cn209672994 zhangqq at qingong. Cn We will try our best to provide you the best service. We are looking forward to hearing from you Amy Zhang Sales/ Dept |
