Quick Details

• OE Experience:

  No

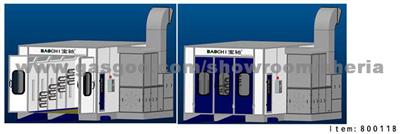

Product Name:BC-D70/40(Electric-Heated)Automotive Spraying/Baking Booth

BC-D70/40(Electric-Heated)Automotive Spraying/Baking Booth

Application

auto

Product Description:



Outside size (L×W×H)	Inside size(L×W×H)						(W×H)	(W×H)	(KW)
7000×5350×3450	6880×3880×2750						3000×2700	600×1750	46.8
Room sysem	wall panel: 58mm EPS insulated material, coated steel cover, thickness:60mm, long-use basementenvironmental galvanized steel, fixed by anti-rust pipes(40×80), high strength,beautiful, durable, equiped with 3 rows of galvanized floor grids, 2 rows of anti-skid plate ramp: anti-skid board
Air-intake & air-exhaust system	1×7.5kw turbo fan for air-intake,capacity: 25000m3/h,1×7.5kw turbo fan for air-exhaust,capacity: 25000m3/h, low noise, big air capacity, power-saving work area board: galvanized full air speed0.30m/s;air exchange rate320time/hnoise80db(a)
Lighting system	upper light: 45° fixed by 32pcs×36w phillip light tube with PAK light holder,side light: 10sets×2pcs=20pcs×30w phillip light tube with PAK ballast,illuniation1000Lux for your option, you can choose BCS15LED lighting system(integrated in safety, anti-explosion, anti-dazzling & energy-saving design, more than30,000 hours use-life,? illumination:1,200LUX. Compared with related light, it can save more than 67% energy. )
Air filter system	Two filter layer structures: crude and refined filter. Crude filter: domestic high quality nonwoven cotton, can catch the dust larger than 10m, fixed on the vent door of work area, there is an adjustalbe door for its replacing. Refined filter: BAOCHI600G high quality filter cotton made by customization, multi-layers, dust capacity: 420g/, fixed on the bottom of plenum, supported by coated top net, beautiful and easy to replace. The whole filter system has a big dust capacity, low windage,long-use,the filter rate is more than 98%,TSP1.4/m3. A bird preventing net on the air inlet door, drawer-type device which can? avoid paint on fans
Heating system	short-wave infrared heating lamp,can be used more than5,000-hour, higher efficiency in drying paint. With swing lifting design, you can use it more conveniently.
Control system	The main parts are brand at home or abroad for spray booth. Stable,reliable, convenient and accurate system, multi-protection circuit, can automatically display all the work process and the fault condition. light switch, temperature time setting, normal spraying, risen-temper spraying, baking, emergency stop, failure alarm, over temperature alarming, hour meter,the whole working process can be set in a time
Environmental cabinet	Use 7.5KW turbo fan, multi-layers paint filter device and active carbon filter device, reach the national standard(Integrated emission standard fo air pollutants).

Built In 2001, Zhongshan Baochi Automobile Maintenance And Testing Equipment Co. Ltd, Locates In A Great City- - Zhong Shan In China. In 2006, Baochi Brought Into Advanced Technology From Europe, And Had Good Cooperation Relationships With European Companies And Has Been Certificated By CCS For ...[Read More]

Company Profile:

• Main Product:

  Baochi Spray Booth

• Business Type:

  Manufacturer

• Current Export Market:

  Eastern Asia, Southeast Asia, Mid East, Africa
