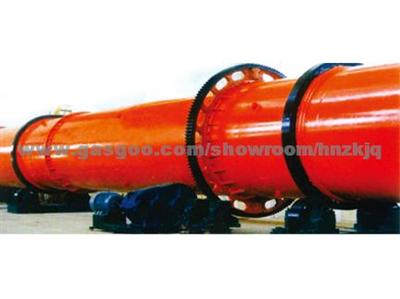

Professional Drying Equipment Rotary Dryer
Introduction of rotary dryerRotary dryer is a kind of device for heating and drying the material. Rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation.The rotary dryer manufactured by our company, is hot sale. H serial rotary dryer, mainly used in mine beneficiation, building material, metallurgy, chemical industry and other sectors, is drying material with a certain humidity and size. H serial rotary dryer, mainly used in mine beneficiation, building material, metallurgy, chemical industry and other sectors, is drying material with a certain humidity and size.
Structure of rotary dryerRotary dryer machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
Advantages of rotary dryerOur rotary dryer's advantages are as follows:The process of dryer is very advanced, which takes fast drying with high temperature, high heat transfer coefficient, high heat efficiency and large drying capacity. Air flow drying combines with the high speed agitation drying, which disperses the viscid material sufficiently and improves the contact area of material and thermal medium, thereby improves the process of drying It takes special scrapings device into the dryer so that avoid the material from sticking the wall. Wide application, easy operation, light maintainence work and stable quality.ZK Rotary Dryer is widely used in the field of building materials metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay ,sand, limestone and so on. It is made into rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reason able structure, high efficiency, low energy consumption and convenient for transportation.We supply the following dryer: wet material rotary dryer, sand dryer, sawdust dryer, coal slime dryer, bentonite dryer, ore concentrate dryer, gypsum dryer and others.
Technical Parameters of rotary dryer
Product Specifications | Production capacity(t/h) | Power(kw) | Cylinder speed(r/min) | Reducer Model | Weight(t) |
0.6×8 m | 1.5-2.8 | 4 | 8 | JZQ 250-16- | 5.1 |
0.8×10 m | 2.5 | 4 | 7.5 | JZQ 350-16- | 6.9 |
1.0×10 m | 3.3-4.9 | 5.5 | 5.8 | JZQ 400-16- | 7.5 |
1.2×10 m | 4-6 | 7.5 | 4.8 | ZL 50-16- | 13.5 |
1.5×12 m | 7-10 | 10 | 4.8 | JZQ 500--2F | 18.9 |
1.5×15 m | 8-13 | 18.5 | 4.8 | ZQ 500-2F | 21 |
1.8×12 m | 12-16 | 18.5 | 4.1 | JZQ 50-16-2 | 22.83 |
2.2×12 m | 18-22 | 18.5 | 3.2 | JZQ 650- | 37.6 |
2.2×14 m | 19-23 | 22 | 3.2 | JZQ 650- | 40 |
2.2×16 m | 20-24 | 30 | 3.2 | JZQ 750- | 45 |
2.4×14 m | 23-25 | 30 | 3 | JZQ 750- | 51 |
2.4×18 m | 25-28 | 37 | 3 | ZL 85-13- | 54 |
3×20 m | 40-50 | 55 | 2.59 | ZL 100-16- | 78 |
3×25 m | 45-58 | 75 | 2.59 | ZL 100-16-I | 104.9 |
