Introduction:

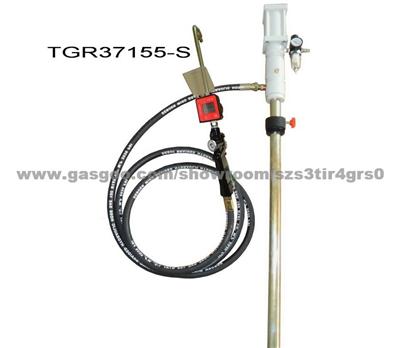

digital display pneumatic oil pump TGR37155-Sis a new liquid suction device, configuration of high-quality pneumatic piston pump, measurement of filling gun, connecting hose. It uses compressed air as the driving force to promote piston pump reciprocating motion to drive the tip, thus to fill and transport a variety of liquid. It is the preferred filling equipment for auto repair shop, auto 4s station, quick lube service centers, production lines and other areas.
digital display pneumatic oil pump TGR37155-S Technical Parameters:
1) Apply on 180-220 KG of standard drums
2) Degree of accuracy for measurement of filling gun: ±0.5%
3) Compression ration of drum pumps:5:1
4) Straw length: 940mm
5) Air inlet pressure range: 4-8bar
6) Maximum delivery: 18L/min
7) Power: compressed air
8) Pumping oil: a variety of engine oil, gear oil, lubricating oil and other similar liquids.
9) Installation Requirements: vertically
10) Output pressure: 0.8-1.2Mpa
11) Straw diameter: 42mm
12) Hose specifications: 1/2diameter4 M long.
13) Filling gun: with digital display table
digital display pneumatic oil pump TGR37155-S Composition:
1) 5:1 dual role of bottled pump
2) Bung nut used to fix the pump on drums
3) Pipeline 1/2diameter, 4 M long
4) Filling gun with digital display table
