Quick Details

• OE Experience:

  No

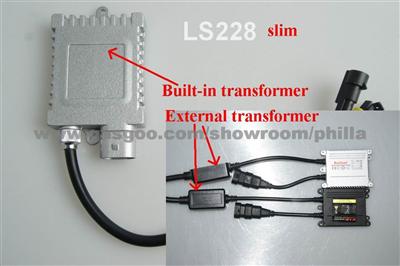

Product Name:12v35w AC Full Slim Ballast

12v35w AC Full Slim Ballast

Application

auto

Product Description:

Model: LS228
Input voltage: DC7 -18V
Output power: 35W ± 2W
Output voltageDC50-150V
Cold starting current: <4.5A
Hot starting current: <4A
Operation frequency330Hz
Expected life-span: >3000hrs
Operation temperature: -40 ~ +105

Description:

1.For all cars with a voltage of 12v;
2.The sole super ballast with built-in high voltage transfer in the global market;
3.Low-current start, to be stable within 5 seconds. Least damage to cars;
4.More better work efficiency>83%, the lowest work temperature;
5.Higher Light Voltage:23000V±3000V,ensure lighten the bulb everytime;
6.Operating frequency close to Hella, ensure stable lamp output;
7.Open circuit protection/Short circuit protection/reverse connection protection/less or over voltage protection;
