Quick Details

• Supply Ability:

  5000 Set/Sets per Month led auto headlights

• Delivery Details:

  Quickly 2-4 working days after receipt of full payment

• Packing:

  1.One set in a box with size 15.2*16*6.4cm. 2.Outer carton: 580*420*410mm carton, 36 boxes each carton. 23kgs/carton.

• Delivery Port:

  Shenzhen , Zhuhai, Hongkong

• OE Experience:

  No

Product Name:2017 New Design Turbo Fan Auto Canbus Car Error Free LED headlight H4 H7

2017 New Design Turbo Fan Auto Canbus Car Error Free LED headlight H4 H7

Application

all

Product Description:

Product name:

2017 New Design Turbo Fan Auto Canbus Car Error Free LED headlight H4 H7

LED headlight features:

1.Max.4000lm/bulb lumens Superbright Light Output;

2.Adjustable Focus Length to Adapt for Different Cars;

3.Latest Automotive Lighting LED;

4.One-Piece Integrated High Efficiency Cooling System;

5.Super Slim Emitting Structure Design.

Product specifications -- 40W-4000LM Car Led Headlight

Product show:

How to install the P8 LED headlight onto your vehicle?

Models with fixed collar (adapter): HB3, HB4, H8, H9, H10, H11, 880, 881, H16, 5202, H13, H15,9004,9007,9012,PSX24,PSX26.

The collars of the models above have been factory adjusted and fixed to an appropriate position. You can install it as delivered. If any modifications needed for better light output, please refer to the following instructions. You can adjust the focus length and lighting direction by loosening the screw with the matching wrench and rotating the bulb clockwise or anticlockwise. Significant results may be noticed after the adjustment and keep adjusting until you get the ideal light output.

Installation steps as the following:
-Take the original bulb and gasket out of the light fixture.
-Attach the P8 LED bulb into the bayonet of the light fixture.
-Screw up the bulb body clockwise.

-Connect the bulb body and ballast

Models with unfixed collar (adapter): H1, H3, H4, H7, D1, D2, D3, D4S/R.
The collars of the models above have not been factory fixed and there are self-lock spring screws and slot in the bulb body. You need to screw off the collar from the bulb body and lock it on the headlight reflector first. And then rotate the bulb clockwise until you get the ideal light output. Lock the screw after adjusting.
Installation steps as the following:
-Take the original bulb and gasket out of the light fixture.
-Screw off the collar from bulb body.

-Place the collar in the light fixture.
-Screw up the bulb body clockwise.
-Connect the bulb body and ballast.

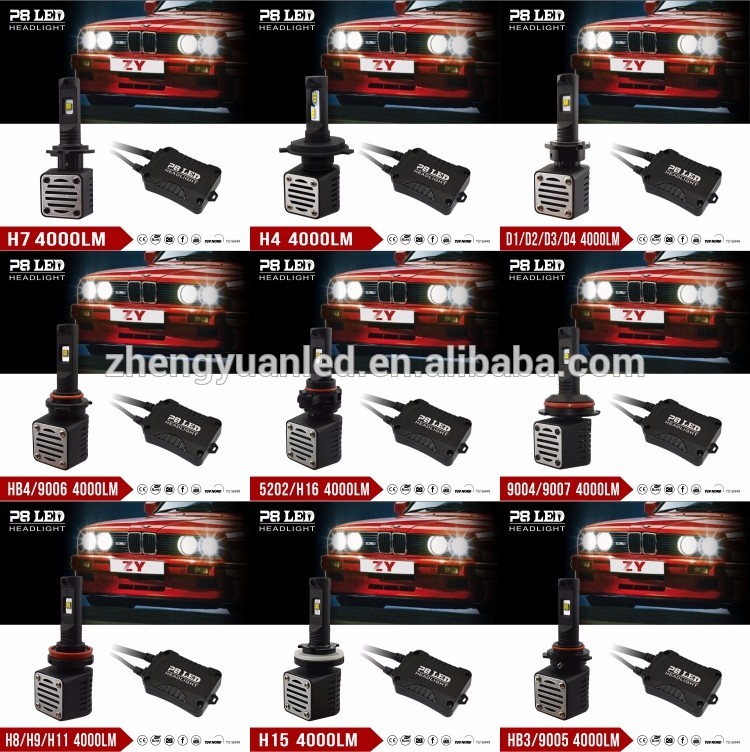

Available Bulb Types:

(Total 4 Series of Auto LED headlight Bulbs For Your Option)

P5 LED Headlight:

1. 3000lm,25w led car headlight

Available base: H1,H3,H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,880,881,D(1,2,3,4),D(1,2,3,4)R/S

2. 3500lm,35w led car headlight

Available base: H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,D(1,2,3,4),D(1,2,3,4)R/S

3. 4500lm,45w led car headlight

Available base: H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,D(1,2,3,4),D(1,2,3,4)R/S

P6 LED Headlight:

1.3200lm,25w led car headlight

Available base: H1,H3,H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,880,881,D(1,2,3,4),D(1,2,3,4)R/S

2.4500lm,45w led car headlight

Available base: H1,H3,H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,880,881,D(1,2,3,4),D(1,2,3,4)R/S

3.5200lm,55w led car headlight

Available base: H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,D(1,2,3,4),D(1,2,3,4)R/S

P7 LED Headlight:

1.2100lm,30w led car headlight

Available base: H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,D(1,2,3,4),D(1,2,3,4)R/S

2.5000lm,50w led car headlight

Available base: H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,D(1,2,3,4),D(1,2,3,4)R/S

P8 LED Headlight:

1.4000lm,40w led car headlight

Available base: H4,H7,H8,H9,H10,H11,H13,H15,H16,9004,(HB3)9005,(HB4)9006,9007,9012,5202,D(1,2,3,4),D(1,2,3,4)R/S

Packaging:

  Two pieces for one set,one set in a box(OEM packing or as customer's request)

What′s in the box?

LED headlight bulb x 2
Ballast x 2
Product manual x 1
Hex wrench x 1
Cable tie x 2
Screw x 2

Shipping:

     FedEx/DHL/UPS/TNT for samples, Door-to-Door.

     By Air or by Sea for batch goods, for FCL.

     Customers specifying freight forwarders or negotiable shipping methods!

     Delivery Time: 1-3 working days( in stock)/3-10 working days(out off stock) after receipt of full payment

Payment terms:

      T/T, Western Union, Money Gram, PayPal, Bank Transfer: 50% deposits; 50% balance before    delivery(For Big Order)

Excellent service on before-sale,on-sale and after-sale.

1.Fast reaction when you contact us

2.Professional quality control bring you the excellent products

3.Detailed communication makes sure the goods you really need

4.Offer refund and exchange service to protect your benefits

Send your Inquiry Details in the Below, Click "Send" Now!And kindly to let me know which models and what theri color temperature do you prefer to.
