Product Description
The RICO 52mm digital gauge series is a perfect accurate bar-graph LED display for keeping monitor how your vehicle's real time status.
Product Number | DGA-BL |
---|---|
Product description | 52mm Digital Gauge Series - Battery level indicator |
Features | High reliability and small size. Display one cell at the time. Low power consumption. LED flash for low charge level. Easy to read 10 segment of LED bar display. Memory option to recall last charge level. |
Installation | Simply follow our installation sheet of Battery level indicator. |
Function | A 10-bar LED displays the state-of-charge battery level, bar by bar, from full to empty. At 70% level of discharge, a flashing LED signals an “energy reserve” alert. At 80% level of discharge, flashing LEDs provides an “empty” status warning. |
Application | Used for forklift, golf carts, motorcycle, electric marine motors, electric bicycles, commercial cleaning equipment, and electric vehicle. |
Place of origin | Taiwan |
Specification
Mechanical: | |
Color | Black & White |
---|---|
Display range | 10 bar-graph LED |

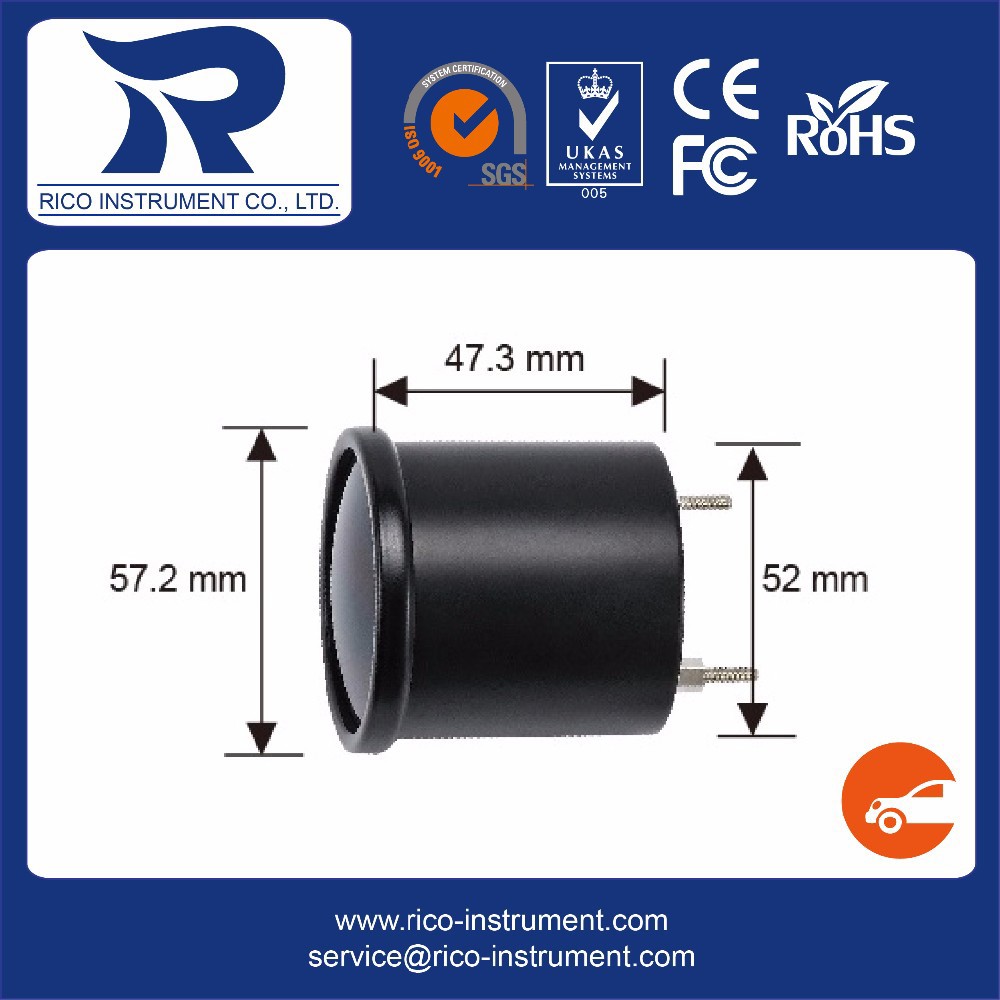

Dimension | 52mm (cut-off diameter) x 49mm (depth) |
Electrical: | |
Operating voltage | 12V electrical system (ask for 24V, 36V, 48V system) |
---|---|
Operating temperature | -20鈩?to +85鈩?/p> |
Product Photo
Company Information

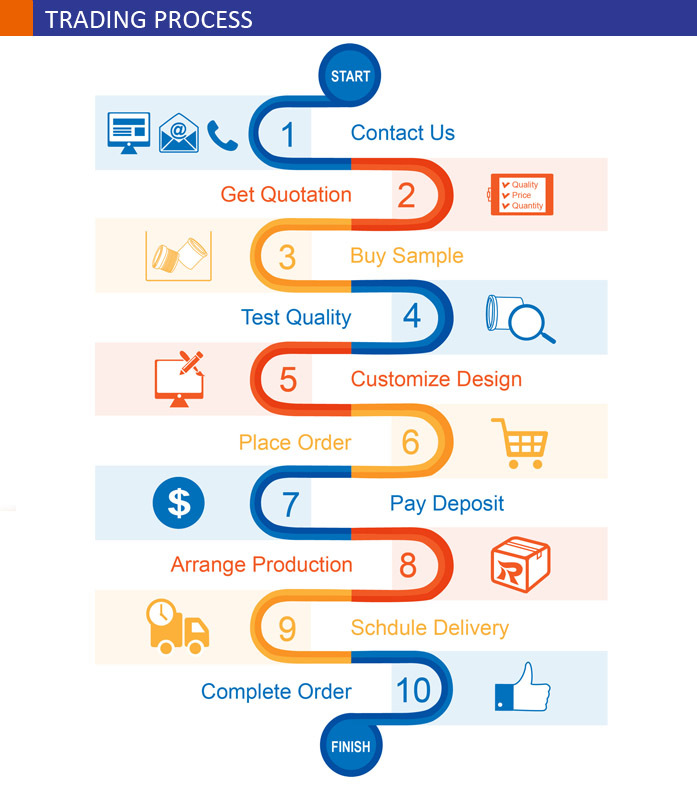

Trading Process
Packaging & Shipping
Certifications

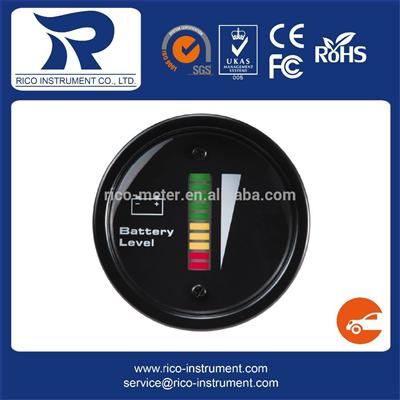

52mm Automobile Gauge Digital LED display- Battery level indicator
