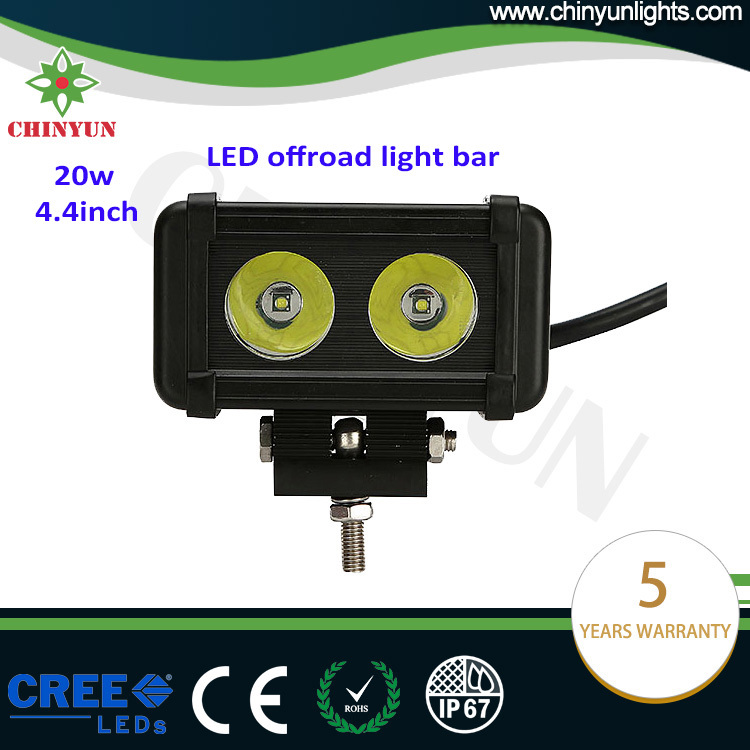

Waterproof 20W flood Beam led light bars for off road trucks 4x4

The description of 4 inch off road flood led light bars
| LED Power: | 20W |
| Input Voltage: | 10-30V DC |
| Lumen Flux: | 1700lm |
| LED Chips: | 2pcs*10w high intensity CREE LEDs |
Color Temperature: | 6000K |
Beam Pattern: | Spot, Flood |
Material: | Die-cast aluminum housing |
Lens Material: | PC |

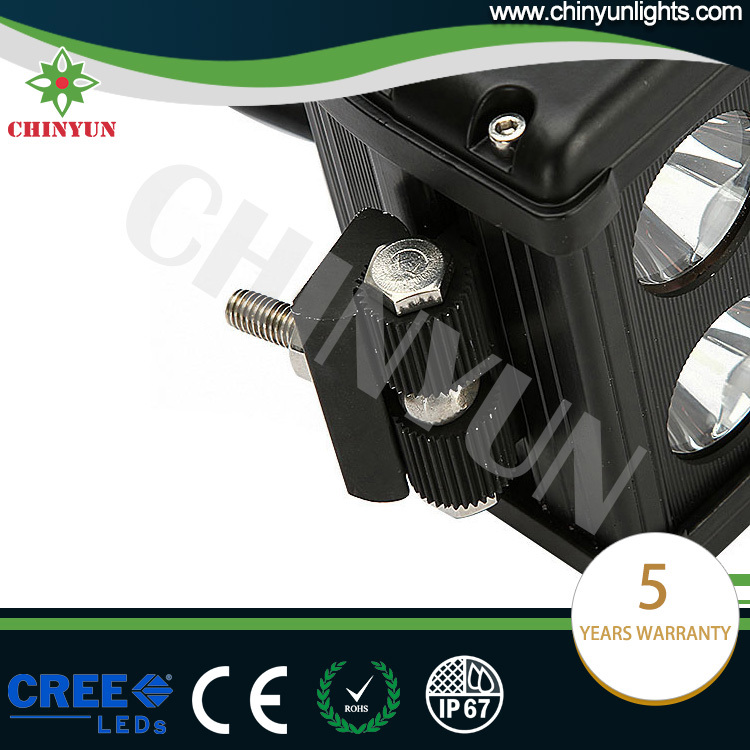

Mounting Bracket: | Sliding brackets |
Body Color: | Black |
Life span: | >30000hrs |
Certification: | CE, ROHS, IP67 |
| Dimensions: | 4 inch |

Wide operating voltage range: it can apply to different types of trucks,cars and other vehicles |
Different power and product sizes optional to install in different place |
Easy to install |
Different light pattern for your choice: flood beam or spot beam or combo |
Light: softer light to prevent glare |
The thickening reinforcement of PC lens, not easy to scratch scrape marks |
Aluminum casing, shockproof and waterproof better |
Longer life span, lower cost, lower energy consumption, environmentally friendly |
Waterproof and anti-caustic: it can work in the rain or any harsh environments |
The Whole line for model Chinyun A series led light bar:
A Series - Single Row - CREE led light bar: 20w;40w;80w;120w;160w;200w;260w
Model: | CY-B20CA | CY-B40CA | CY-B80CA | CY-B120CA | CY-B160CA | CY-B200CA | CY-B260CA |
Size: | 4” | 8” | 15” | 22” | 28” | 37” | 47” |
Wattage: | 20w | 40w | 80w | 120w | 160w | 200w | 260w |
Volt(DC): | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC |
Lumen: | 1700LM | 3400LM | 6800LM | 10200LM | 13600LM | 17000LM | 22100LM |
Chip: | Cree | Cree | Cree | Cree | Cree | Cree | Cree |
LEDs: | 2pcs | 4pcs | 8pcs | 12pcs | 16pcs | 20pcs | 26pcs |
Color Temperature: | 6000K | 6000K | 6000K | 6000K | 6000K | 6000K | 6000K |
Waterproof Rate: | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Lens: | PC | PC | PC | PC | PC | PC | PC |
Body Color: | Black | Black | Black | Black | Black | Black | Black |
Beam Pattern: | Spot/Flood | Spot/Flood | Spot/Flood | Spot/Flood | Spot/Flood | Spot/Flood | Spot/Flood |
Operating Temperature: | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> |
Life time: | >30000hrs | >30000hrs | >30000hrs | >30000hrs | >30000hrs | >30000hrs | >30000hrs |
Certification: | CE, E-mark, RoHS | CE, E-mark, RoHS | CE, E-mark, RoHS | CE, E-mark, RoHS | CE, E-mark, RoHS | CE, E-mark, RoHS | CE, E-mark, RoHS |

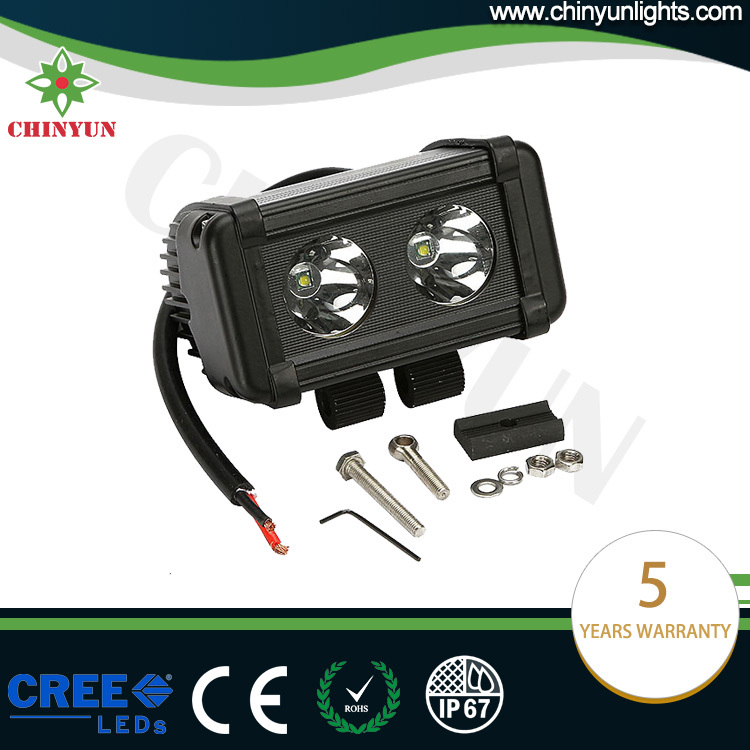

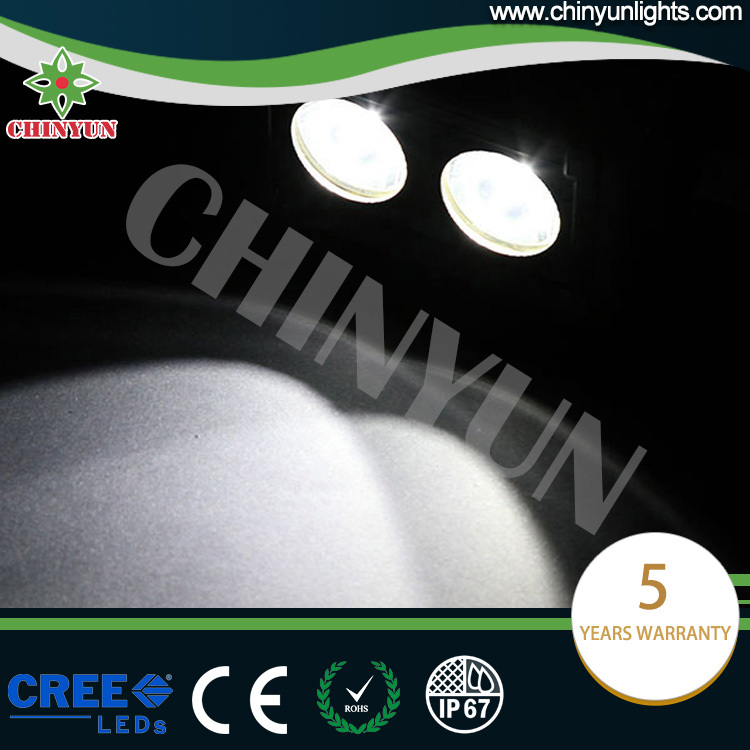

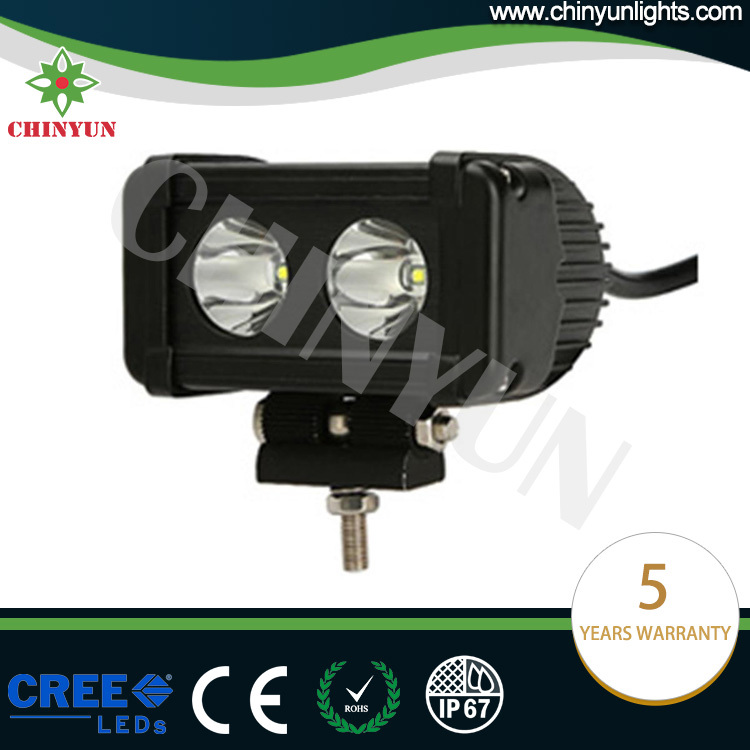

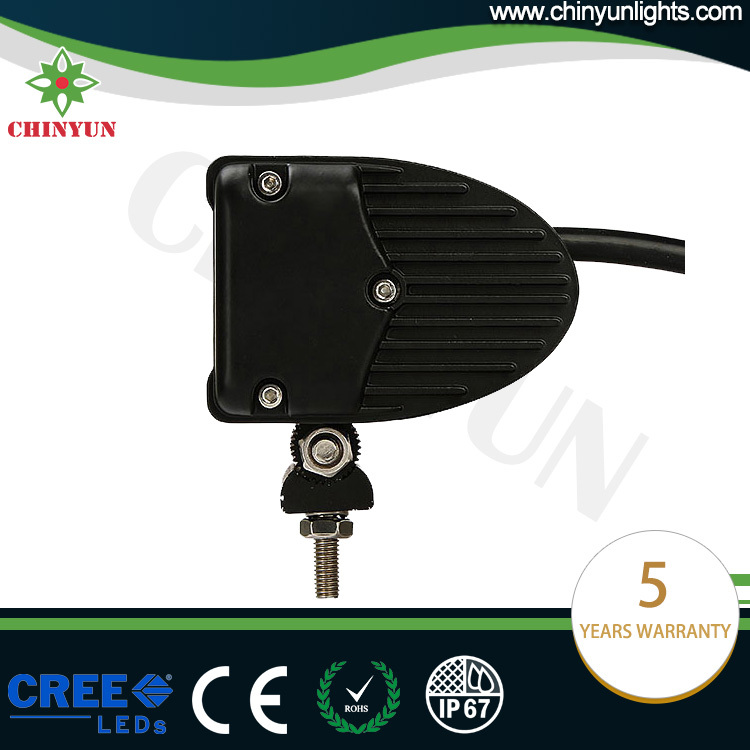

Product images

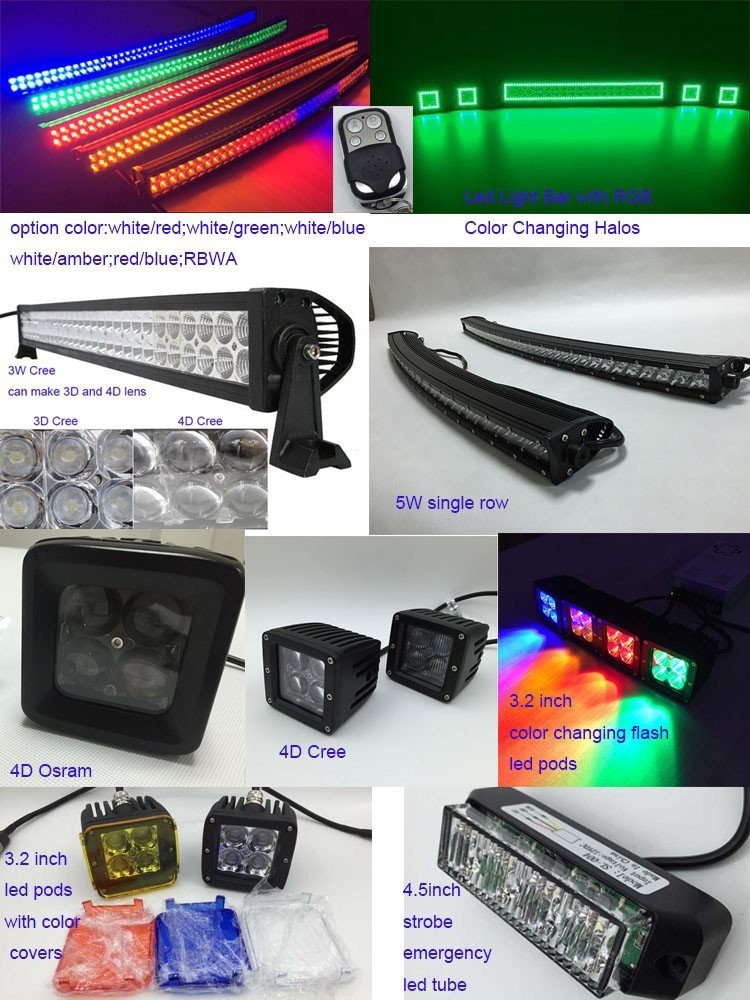

Related products
