ChinYun 40 inch curved led light bar 3D reflector 240w off road spot flood combo beam led driving light bar

Application: all
Market Type:After Market
Price: US $136 - 152
Payment Terms: L/C, T/T, Western Union
Minimum Order: 1 Piece

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Type:
Headlight
Voltage:
12V
Lamp Type:
LED
Certification:
CE, RoHS, IP67
Car Make:
universal
Place of Origin:
Guangdong China (Mainland)
Brand Name:
ChinYun led light bar
Model Number:
CY-BD240CD-Y05
Warranty:
12 Months
Color Temperature:
6000K
LED Power:
240W
Lumen Flux:
20400lm
Input Voltage:
9-32V DC
Material Type:
Diecast Aluminum Alloy
Beam Pattern:
30 degree Spot/60 degree Flood/Combo
Body Color:
Black
Other:
waterproof, shockproof, anticaustic
Model:
led light bar
Size:
13.5" 21.5" 31.5" 41.5" 50" 52"
Place of Origin:
Guangdong China (Mainland)
Delivery Time:
within 3-15 working days after get the payment
Packing:
1pcs led light bar in 1box; 6pcs/carton; 4pcs/carton
Delivery Port:
Guangzhou , Shenzhen
OE Experience:
No

Product Name:ChinYun 40 inch curved led light bar 3D reflector 240w off road spot flood combo beam led driving light bar

ChinYun 40 inch curved led light bar 3D reflector 240w off road spot flood combo beam led driving light bar

Application

all

Product Description:

ChinYun 40 inch curved led light bar 3D reflector 240w off road spot flood combo beam led driving light bar

Factory Directly! Fast Shipping! Competitive Price!

ChinYun led light bar curved series with 3D lens 72w 120w 180w 240w 288w 300w

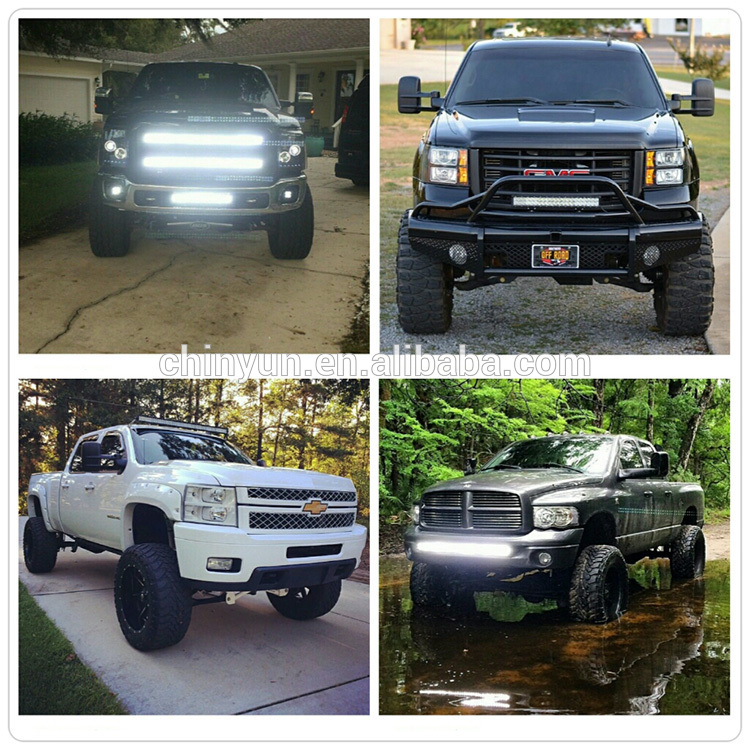

off road led light bar.jpg

LED Power: 240W 20400LM

Operating Voltage: 9-32V DC

80pcs*3w high intensity CREE LEDs

Waterproof rate: IP 67

Color Temperature: 6000K

Material: Diecast aluminum housing

Lens material: PC

Mounting bracket: Alu firm bracket

Lens: 3D lens

Bracket: Fixed bracket

Body Color: Black

Beam: 30degree Spot/60degree Flood/Combo

30000 hours above life time

Dimensions: 41.5 inch

Certification: CE/RoHS/IP67

Product Description for led light bar:

LED Power:	72W,120W,180W,240W,288W,300W
Size:	13.5” 21.5” 31.5” 41.5” 50” 52”
Input Voltage:	9-32V DC
Lumen Flux:	6120lm,10200lm,15300lm,20400lm,24480lm,25500lm
LED Type:	CREE
Waterproof Rate:	IP 67
Color Temperature:	6000K
Beam Pattern:	30° Spot/60° Flood/Combo
Material:	Die-cast aluminum housing
Lens Material:	PC
Mounting Bracket:	Alu firm bracket
Lens:	3D lens
Bracket:	Fixed bracket
Body Color:	Black
Operating Temperature:	-40鈩?/span>~85鈩?/span>
Life time:	>30000hrs
Certification:	CE/RoHS/IP67
Other:	waterproof, shockproof, anticaustic
Warranty:	12 months
Packing(pcs/carton):	6pcs/carton. 4pcs/carton
Widely used in different types of cars, trucks, forklifts, snowploughs, excavator truck, SUV, engineering vehicles, agricultural machinery vehicles and armored cars etc.

led truck light bar.jpg

Wide operating voltage range: it can apply to different types of trucks,cars and other vehicles

Different power and product sizes optional to install in different place

Easy to install

Different light pattern for your choice: flood beam or spot beam or combo

Light: softer light to prevent glare

The thickening reinforcement of PC lens, not easy to scratch scrape marks

Aluminum casing, shockproof and waterproof better

Longer life span, lower cost, lower energy consumption, environmentally friendly

Waterproof and anti-caustic: it can work in the rain or any harsh environments

The Whole line for model ChinYun D series with 3D lens curved led light bar:

D Series - Dual Row - CREE curved led light bar with 3D lens: 72w;120w;180w;240w;288w;300w

Model:	CY-BD72CD	CY-BD120CD	CY-BD180CD	CY-BD240CD	CY-BD288CD	CY-BD300CD
Size:	13.5”	21.5”	31.5”	41.5”	50”	52”
Wattage:	72w	120w	180w	240w	288w	300w
Volt(DC):	9-32V DC	9-32V DC	9-32V DC	9-32V DC	9-32V DC	9-32V DC
Lumen:	6120LM	10200LM	15300LM	20400LM	24480LM	25500LM
Chip:	Cree	Cree	Cree	Cree	Cree	Cree
LEDs:	24pcs	40pcs	60pcs	80pcs	96pcs	100pcs
Color Temperature:	6000K	6000K	6000K	6000K	6000K	6000K
Waterproof Rate:	IP67	IP67	IP67	IP67	IP67	IP67
Lens:	3D lens	3D lens	3D lens	3D lens	3D lens	3D lens
Body Color:	Black	Black	Black	Black	Black	Black
Beam Pattern:	Spot/Flood/Combo	Spot/Flood/ Combo	Spot/Flood/ Combo	Spot/Flood/ Combo	Spot/Flood/ Combo	Spot/Flood/ Combo
Operating Temperature:	-40鈩?/span>~85鈩?/span>	-40鈩?/span>~85鈩?/span>	-40鈩?/span>~85鈩?/span>	-40鈩?/span>~85鈩?/span>	-40鈩?/span>~85鈩?/span>	-40鈩?/span>~85鈩?/span>
Life time:	>30000hrs	>30000hrs	>30000hrs	>30000hrs	>30000hrs	>30000hrs
Certification:	CE, E-mark, RoHS	CE, E-mark, RoHS	CE, E-mark, RoHS	CE, E-mark, RoHS	CE, E-mark, RoHS	CE, E-mark, RoHS

Applications for led light bar:

Engineering vehicles: excavator, treedozer, road roller, bulldozer, crane and mining truck etc.
Specialized vehicles: fire engine, police cars, rescue vehicle, communication vehicle and military command vehicle etc.
Off Road vehicles, ATV, SUV, UTV, truck, forklift, trains, boat, bus and tanks etc.
Agricultural vehicles, tractor.

off road led light bar.jpg

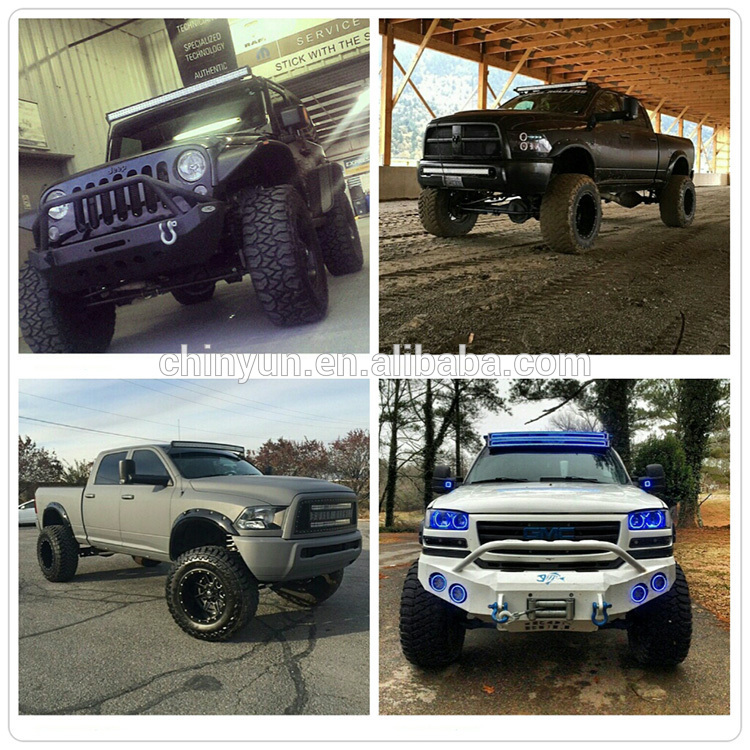

light bars for trucks.jpg

off road light bar.jpg

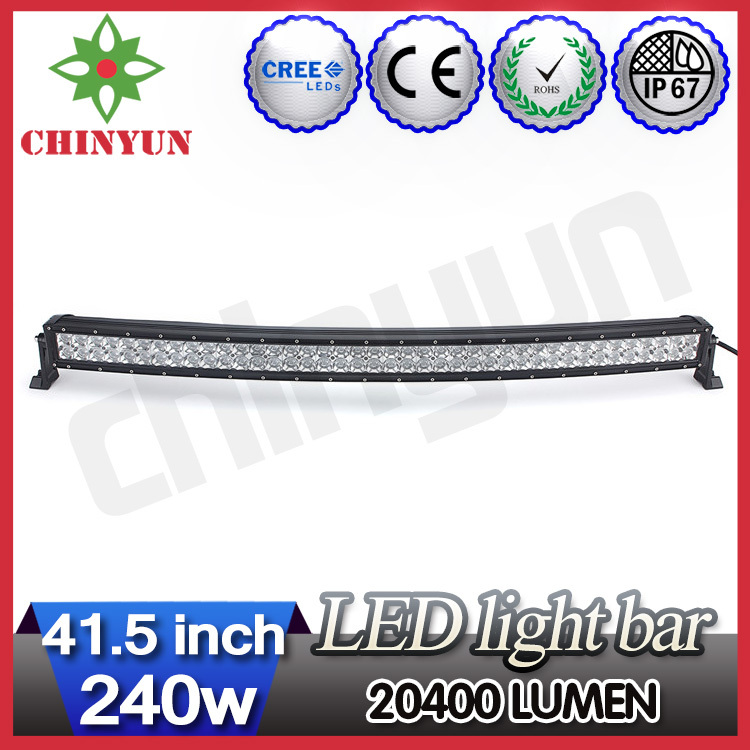

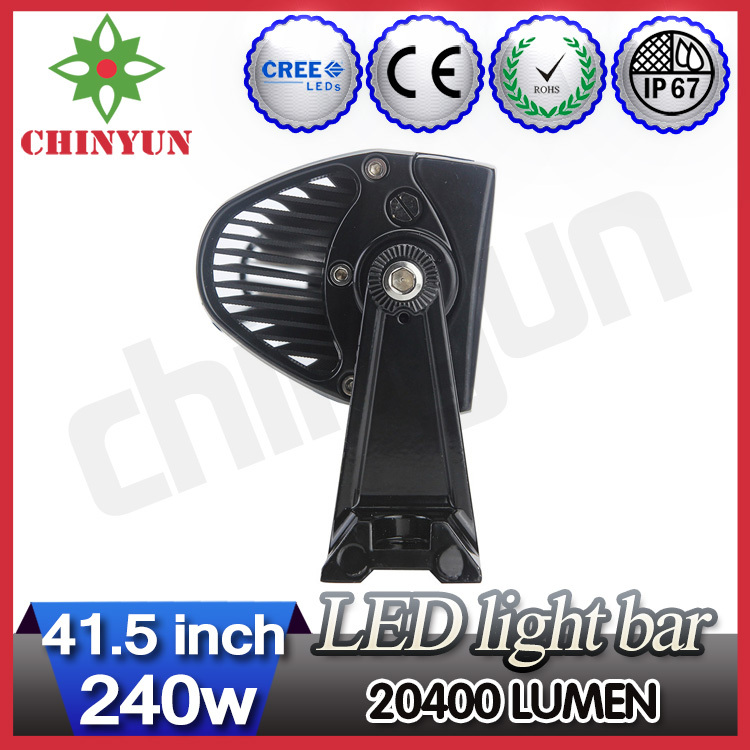

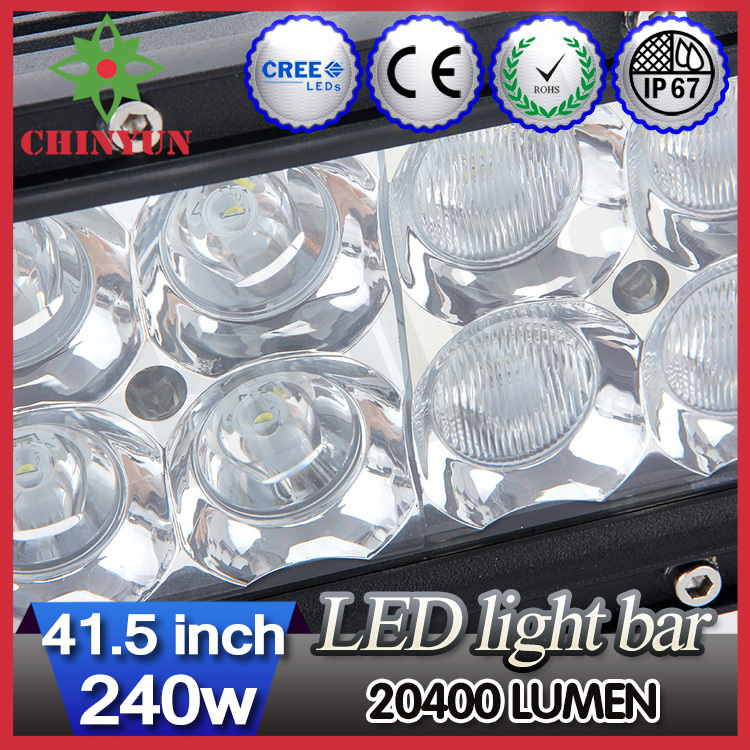

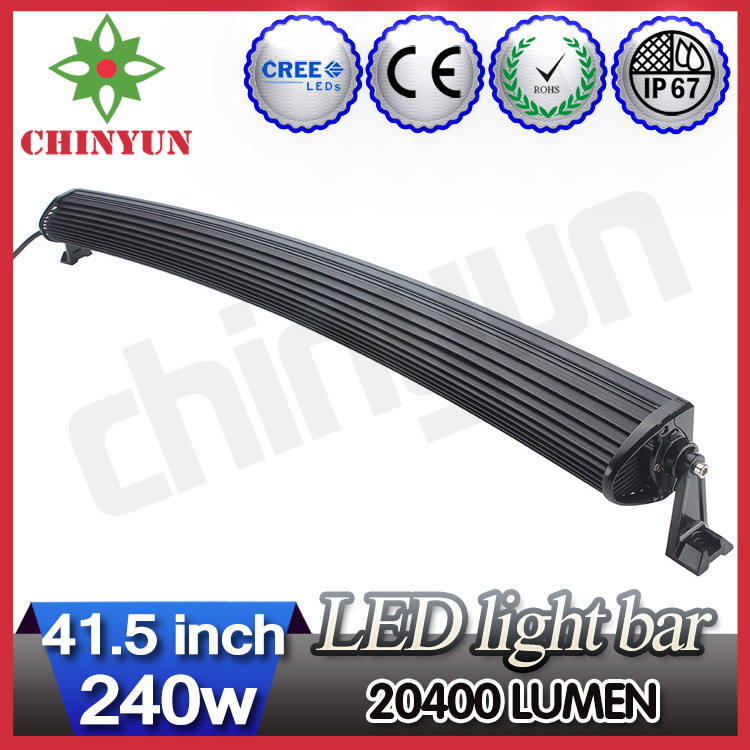

led light bar curved.jpg curved led bar.jpg 40 inch curved led light bar.jpg 40 curved led light bar.jpg

light bar for trucks.jpg

led light bar off road.jpg

light bar for truck.jpg
