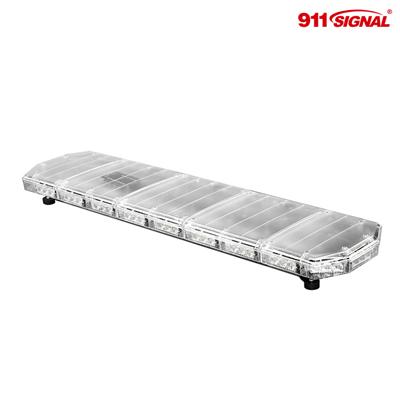

Led light bar for car:
Technical Parameter
Extreme performance in a package under 2.2" high.
Plastic Housing, Light weight.
Model | F117E3 | |
Light Characteristics | LED Power | 66PCS 3W LED |
LED Lifespan | 100,000H | |
LENS | TIR | |
Flash settings | 1-4HZ | |
Electrical Characteristics | Voltage | DC 10-33V |
Max Power | 120W | |
Physical Characteristics | Colour Available | blue , amber , Red-Blue combination color |
Ambient temperature | -20--+65鈩?/td> | |
Waterproof | IP65 | |
Mounting | Gutter Mounting by brackets. | |
Flash patterns | 35 | |
Meet and Exceeds |
ECE R65 TB1 00 0032 ECE R65 TA1 00 0033, ECE R10 04 12748 |
|
Product Dimension | 120cm L x 30cm W x 5.6cm H(48.0 "L x 11.8" W x 2.2"H) | |
Housing Materials | Plastic | |
WIRE | 5M length of 10 core wire |
Cover Colors available: red, blue , amber ,white and black.
Integrated Traffic Direction feature.
Used the E3 module
Meet and Exceeds ECE R65 ,R10 Standards.
Meets IP65 international protection standards
Product Description
Car Light Bar, Emergency Vehicle Light Bar, LED Warning Light Bar:
** A durable LED light bar built with polycarbonate lenses and an aluminium chasis to ensure although strong, remains lightweight. Choose from Linear, or TIR module options.
** Traffic director and other LED lighting options available
Supplied with mounting brackets
** Available with pre-configured BR990 or BR110 controller on request
Gutter Brackets available : MS080,MS130,MSA210
Cigarette lighter plug available : A13-56 , A13-76
** With 8-core Cable:1. ON/OFF 2. Flash Pattern Selection
** With 12-core Cable: 1. On/off 2. 50% Power 3. On/off For Take Downs And Alley Lights
4. Activates Take Downs And Alley Lights 5. Takedown 6. Flash Pattern Selection
7. Left Arrow 8. Right Arrow 9. Left Alley Light 10. Right Alley Light
