Quick Details

• Type:

  Headlight

• Voltage:

  12V

• Lamp Type:

  HID Xenon

• Certification:

  CE,ROHS

• Car Make:

  all kinds of car models

• Place of Origin:

  Guangdong China (Mainland)

• Brand Name:

  World,OEM

• Model Number:

  H1

• Warranty:

  18 Months

• color temperature:

  3000K-30000K

• hid inner tube brand:

  Phillips

• warranty:

  18 months

• defective rate:

  less 0.01%

• life span:

  50000hours

• wattage:

  35W/55W

• current:

  AC

• quality:

  top rank

• net weight:

  0.2KG per pair

• packing:

  white box

• Place of Origin:

  Guangdong China (Mainland)

• Delivery Time:

  about 3 to 5 days once it confirmed.

• Packing:

  white box with master carton,60pairs/carton,carton size:70x25x30cm

• Delivery Port:

  Guangzhou,China

• OE Experience:

  No

Product Name:Super quality,Phi-lips tubes,12V/35W,H1/H11/H3/9006/H8/H7/H4/D2R/D2S,12V/55W,xenon hid

Super quality,Phi-lips tubes,12V/35W,H1/H11/H3/9006/H8/H7/H4/D2R/D2S,12V/55W,xenon hid

Application

all

Product Description:

Best xenon hid:

Model:World-H1

Advantage of World xenon bulb:

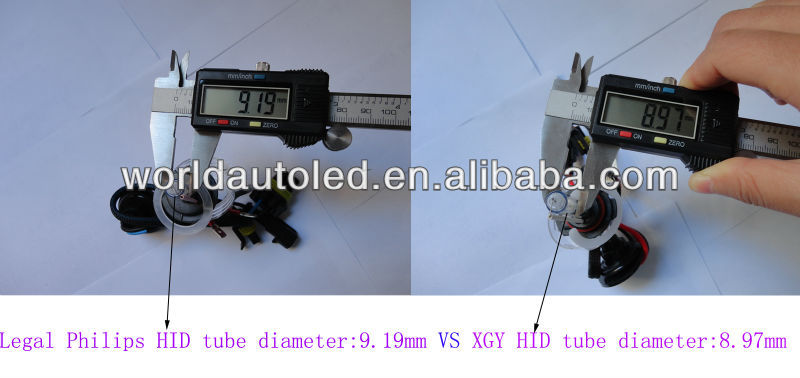

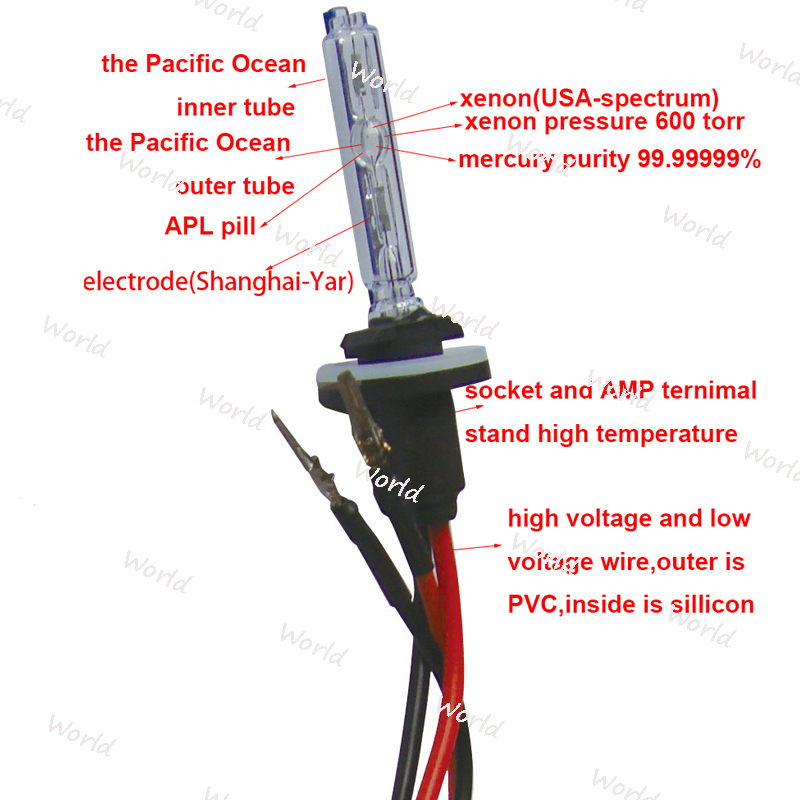

1. The burner is made by Philips from Netherlands.It has the best permeability.The tube diameter is 9.1mm/9.0mm,other company's tube diameter is 8.9mm.
2. The tube electrode is made by Sylvania from USA.
3. The purity of mercury reach to 99.999999%.
4. Xenon with high purity and best protection is made by Messers from Germany.
5. The tube atmospheric pressure over 6 atm for increased luminous flux,to protect the electrode and prolong the bulb’s life.
6. This input wire is made by Volkswagen.
7. The bulb voltage range is controlled between:85±10V.However the international standard is 85V±17V.
8. Our product line equipments are imported from South Korea,the most advantaged in China at present.
9. Special research and produce ballast which according to the parameter of bulb.Long lifetime and low defective rate.

Normal ballast parameter:

Input Voltage:9-16V

Normal Voltage:13.5V

Normal Current:3.2A

Max. Input Current:9A

Operating Temperature:-40 to +105C

Output Power:35W,50W,55W

Output AC Frequency:250Hz

Start Time:45s

Start Voltage:20-25Kv

Performance:

Waterproof:Accord with DIN 40050 Standard

Dustproof:Accord with SAE J575 Standard

Shockproof:Accord with DIN 40046 Standard

Advantage of World ballast:

Cold start current≤6.2A.Original fuse in car is 7.5A.But most of ballast in market are higher than this owing to their factory can’t control this.It’s a hidden danger to original car circuit.

Hot start current≤3.6A.Very stable electric current keep you safe when you are switching between high light and low light in driving.But some suppliers are up to 10A and not stable enough.

Hot start power≤35W.Stable hot start power make no damage to xenon bulb.This prolongs xenon bulb’s lifetime 1.5 to 2 times.However most of other suppliers are high to 75W.

Cold start power≤56W.No damage to burner and xenon arc.However many others are up to 105W.

Output voltage:60V/165V.After worked for 2000 to 3000 hours later,Xenon bulb working voltage reach to 115V to 150V.At that time many ballasts can not provide that high voltage.So xenon bulb can be lighted up again.But our ballast can output more 10 to 15V.This meands xenon bulb can work more 600 to 1000 hours.

Working efficiency:87%.Very close to Hella,Germany(89%).High efficiency means ballast use most of power for xenon bulb’s work and release less heat.Release less heat means ballast components can work in a good condition.This is the key why we can control our ballast in very low defective rate

FAQ:

1.After installing HID,it happen to light flashing.

World answer:Due to the battery cell can’t offer enough electricity,it happen to light flashing.Adding special harness can resolving this problem.

2.After installing hid,it happen to astigmatism.

World answer:Due to the ballast offer the electricity imbalance,it happen to astigmatism.Adding resistor harness can resolve this problem.

3.After installing H1 hid,it happen to light flashing.

World answer:Due to the H1 base is very small,it need fix exactly,then it will no lamp flashing problem.

Good color temperature:

Different color temperature from 4,300K to 12,000K. Close to sunlight, these colors can effectively reduce driver fatigue and improve safety at night.

-3000K,golden yellow color, penetrating power is strong,main using in rainny and greasy weather day.

·4300K,white with yellow,color rendering index and lumen is high,it can reduce the tireness during the driving.

·5000K,total white,Europen standard,highest color temperature.
·6000K,white,daytime light under sunny

·8000K,whith with little blue
·8000K,above 8000K,the penetrating power is less.

-10000K,sky blue

-12000K-30000K,dark blue,red purple,purple red,green,special color,usually used as fog light.

Bulb item available:

Single beam bulb: 9004-1(HB1), 9005(HB3), 9006(HB4), 9007-1(HB5)

H1, H3, H3C, H4-1, H6, H7, H8, H9, H10, H11, H13-1

D2C, D2R, D2S, D4C, D4R, D4S

Hi/Lo bulb (Xenon L+ Halogen H): H4-2, H13-2, 9004-2, 9007-2

Hi/Lo telescopic bulb: 9004-3, 9007-3, H4-3,H13-3

Lighting performance:

emitting lighting length:165meters

visual length:110meters

visual eters

Installing attention:

1.Be careful,high voltage danger,maybe lead to electric shock injury.
2.turn on and off electricity,pls don’t touch lamp,anti-heat hurt.
3.Pls don’t direct vision to the light,anti-the eye hurt.
4.car accident,pls turn off the electricity,outworn high voltage bag,wire can leak the high voltage,it will be dangerous.

5.Any situation,pls don’t disassemble and change,we will be not responsible for it.

6.When you need replace and repair,pls ask the closest professional insitution for help.

7.Pls don’t close the inflammable,for example,paper,oil, sprayer, spray-paint, diluter and so on.

8.Pls don’t adjust the power rise,it will impact other driver’s safety driving.

9.Pls turn on the car light,after you start up the car.Focus fix exactly,it can't be changed.
