Quick Details

• Voltage:

  9v

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  each set in a giftbox, 10sets in a master carton

• Delivery Port:

  SHENZHEN

• OE Experience:

  No

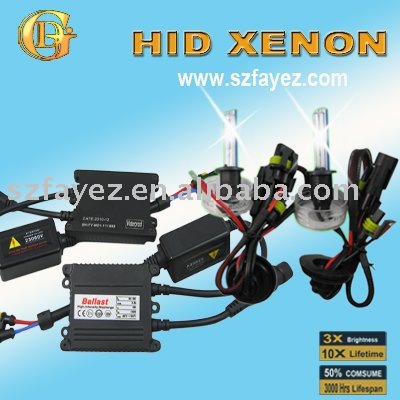

Product Name:KIT DE XENON 3.2 +/-0.1A (Input 12.8V) 4.2 +/-0.1A(Input 24 V)

KIT DE XENON 3.2 +/-0.1A (Input 12.8V) 4.2 +/-0.1A(Input 24 V)

Application

AUTO

Product Description:

Best IC,DSP ballast
Match all vehicle
Easy install,waterproof
High/low voltage & Short circuit protect
Best quality,Fty pric

High Quality Hid Xenon kit
All-purpose Style /DSP Style / Best IC , BEST HOUSING BALLAST
Match with All Vehicle Lamp style

DSP Ballast ,Support CANBUS System

Paramaters:

Input voltage: 9V - 36V
Normal voltage:6.5~12V
Maximum input current: 4.4 +/-0.3A
Normal current: 3.2 +/-0.1A (Input 12.8V) 4.2 +/-0.1A(Input 24 V)
Output wattage: 35W/55W +/-1W
Open circuit voltage: 400V
Instantaneous( Trigger ) voltage: 23000V
Output voltage at stable status: 85 ±17V
Short circuit protect
High Voltage  protect  > 35V
Low. Voltage protect   < 7V
Radiated EMI susceptibility: S95/54/EC
Radiated EMI emissions: S95/54/EC
Output wave form: 125 +/-25Hz square wave
Open lamp circuit protection: Latch-off after 1 second
Shot circuit protection: Latch-off after 1 second
Maximum output current: 8A initial Lamps on, 3A next 2 secs
Turn on light output: >70% at 2 secs, >85% at 3 secs
Working temperature: -40 - +105 degree Celsius

Features:
1. Long time life: The same long time use life to the car using.
2. Save the electricity, just need 35W electricity, Alleviate the burden of the car electricity system, and improve the capacity of the car, the electricity consuming was saved by 40% at least.
3. Over Brightness: the light increased to 300%,it can light higher,farer and more extended.
4. Beautiful appearance, many kinds of the temperature can be choosen.
5. Currence: the description of the products is full it adapt to all kinds of the car, include of all of domestic car and overseas cars.
6. Convenience of iinstallation: just put the HID into the original hole of the lamp,fix the high pressure, put on the electric wire, no need to change the original parts of the car.
7. Security: After accident, all the senstive circuit can by cut off by high pressure in order to keep the people save, high insulated wire and the design of the anti-electromagnatism make you rest easy.

Completed Kits including :
*one pair of HID Bulbs
*one pair of Ballasts (with built-in starter/igniter for better performance)
*one set of  secure Mounting Brackets
*Zip
*All necessary wires and install accessories
*Installation Manual
