Quick Details

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  100pcs/carton

• Delivery Port:

  Rongqi

• OE Experience:

  No

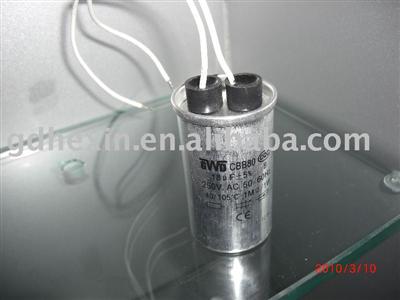

Product Name:Capacitor CBB80(110-630VAC ,-40℃-105℃ )

Capacitor CBB80(110-630VAC ,-40℃-105℃ )

Application

Lighting

Product Description:

CBB80 capacitor, metalized film Widely applied to fluorescent lamps and halogen lamps

Reference standard

confierm to IEC1048 EN61048/61049

Spcifications:

operating temperature range

-40~+50 degree centigrade

Capacitance range

4μF~60μF

Rated capacitor, lighting capacitor
High insulation resistance, explosion-proof
get CE CQC

voltage

110~630VAC

Capacitance tolerance

±5%(J)±10%(K)

Disspation factor

≤4×10(-3)(23degree  centigrade f≡100Hz)

Discharge performance

V2UN60S50V

Less than 50V afterbreakage in 60 seconds at v2-UN

Voltage under steady state

1.1UNRunning under 1.1UN for long-period

Current under steady state

1.5In running under 1.5In for long-period

  voltage proof

Between Terminals

2.0UN(60S)

Terminals  to case

2000VAC

Sea level=2000m

Dimensions

Capacitanceμf

Rated voltageV.AC

dimensions

D±1

H±2

Memo

4

250

30

58

With double ears orientation/ M8×8

6

250

30

58

8

250

30

78

12

250

30

78

14

250

35

70

M8×8

18

250

35

70

M8×8

20

250

40

70

M8×8

25

250

40

70

M8×8

30

250

42

80

M8×8

50

250

50

100

M8×8

60

250

50

128

M8×8

CBB80 capacitor, metalized film capacitor, lighting capacitor

The products are made of metallized polyproplene film, dry type

Characteristics

High insulation resistance, stable reliability, explosion-proof structure, low dissipation factor , excellent self-healing property

Usage
