Quick Details

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  carton

• Delivery Port:

  Shenzhen

• OE Experience:

  No

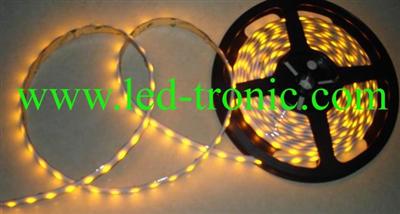

Product Name:SMD LED 3528 Flexible Strip

SMD LED 3528 Flexible Strip

Application

Auto

Product Description:

This kind of Flex Stripe is a perfect solution for edge-lighting of transparent or
diffused  materials, path and contour marking, dynamic colour applications.

   Features:

   1)Made of printed circuit board with self-adhesive tape
2) Can be cut every 3 LEDs along the cut-mark. After cutting, the remaining parts
can be used separately or rejoined
  3) Available in various color: red, green, blue, white, yellow,
  4) Package: 5m / reel

SMD LED 3528 Flexible Strip

Optical and Electrical Characteristics

Each meter of stripe has 20pcs or 30pcs or 60pcs or 96pcs SMD LEDs, arranged in a single line. The available colours are: red, green, blue, white, yellow. The optical and electrical characteristics for each colour are given in the following table:


a)  20 SMD LED series per meter (BL-LR3528C10 version):

Number of LEDs / meter

Order Code

Colour

Wavelength

Viewing Angle

Luminous
Intensity (lm)

Supply Voltage

Power Consumption / meter

20 red LEDs

BL-LR3528R10

Red

625nm

120°

12V DC

20 green LEDs

BL-LR3528G10

Green

515nm

120°

12V DC

20 blue LEDs

BL-LR3528B10

Blue

473nm

120°

12V DC

20 white LEDs

BL-LR3528W10

Cold White

6500K

120°

12V DC

20 white LEDs

BL-LR3528W10-WW

Warm White

3200K

120°

12V DC

20 white LEDs

BL-LR3528W10-WWC2

(With Korean LED assembly)

Warm White

3000K

120°

12V DC

20 yellow LEDs

BL-LR3528Y10

Yellow

590nm

120°

12V DC

b)  30 SMD LED series per meter (BL-LR3528C15 version):

Number of LEDs / meter

Order Code

Colour

Wavelength

Viewing Angle

Luminous
Intensity (lm)

Supply Voltage

Power Consumption / meter

30 red LEDs

BL-LR3528R15

Red

625nm

120°

12V DC

30 green LEDs

BL-LR3528G15

Green

515nm

120°

12V DC

30 blue LEDs

BL-LR3528B15

Blue

473nm

120°

12V DC

30 white LEDs

BL-LR3528W15

Cold White

6500K

120°

12V DC

30 white LEDs

BL-LR3528W15-WW

Warm White

3200K

120°

12V DC

30 white LEDs

BL-LR3528W15-WWC2

(With Korean LED assembly)

Warm White

3000K

120°

12V DC

30 yellow LEDs

BL-LR3528Y15

Yellow

590nm

120°

12V DC
SMD LED 3528
Flexible Strip
best price with superior quality

Bright-Land Enterprises Inc., Limited was specialized in designing and producing electronics products and LED light products. And these products are mainly for architectural lighting, advertisements, therapy lighting, signage, airplane landing light, commercial lighting and ...[Read More]
