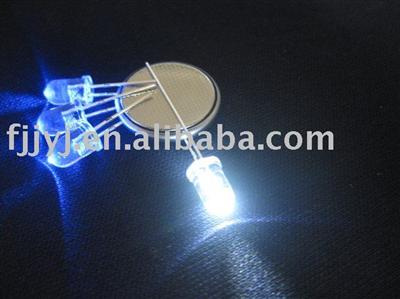

Round LED Lamps of 5mm are available in a wide range of colors. Due to the different chip material, the emitting colors from red, green to blue, yellow, yellow green and so on. Below are the detail information for your reference.
Parameter:
Reverse Voltage: 5 volt
reverse current(Vr=5v): 10uA
Operating Temperature Range:-40 To+85
Storage Temperature Range:-40 To +100
Lead Soldering Tempearture:260 For 5 Seconds
Part No. sellection and application information (ratings at 25 ambient)
Part No.
Chip Material
Lens Type
Emitting Color
Vf
(V)
Peak Wavelength (nm)
Iv
(mcd)
If
(mA)
View angle
(deg)
Typ
Max
Min
Max
Min
Max
5R3UC-503
AlGalnp
Water Clear
Red
1.9
2.5
620
630
1500
3300
10-12
15
5O3UC-503
Orange
1.9
2.5
600
615
1500
3300
5Y3UC-503
Yellow
1.9
2.5
585
590
1500
3300
5G3HC-503
Yellow Green
2.2
2.5
570
575
600
1000
5G4UC-503
Green
2.8
3.8
515
535
5000
12000
5G4UC-503
InGaN
Blue Green
2.8
3.8
500
510
4500
10000
5B4UC-503
Blue
2.8
3.8
460
470
1500
3300
5W4UC-503
White
2.8
3.8
/
/
500
18000
5P4UC-503
Purple
2.8
3.8
390
410
70
150
Application: each kind of illumination character, illumination strip, back light source, holiday
decorative lighting, etc.
