Operating Voltage: 13.2V DC Typical
Cool staring current: <5A MAX
Hot staring current: <4.2A DC (13.2V DC In)
Input Current: <4.2A DC (13.2V DC In)
Output Power: 55W±1W Constant Power
Output Frequency: 380Hz-400Hz
Output Voltage: 70-140V AC True RMS Square Wave
Operating Temperature: -40+105
Efficiency: >87% With input 13.2V DC ConditionIGNITOR
Trigger Output Voltage: 23KV Typical
Trigger Input Voltage: 380V ACProtection
Output Open/Short Protection: Shutdown In 0.5Sec
End Of Life Lamp Voltage: >180V AC RMS Square Wave
Function for owe and over voltage protection
Function for reversed input protection
Water Proof
Thermal protection
Guarantee Details
All the products have 18 months guarantee period. To get a replacement freely for any defect kit, you have to :
1) cut off all the cables from the ballast and bulb.
2) take some clear photos
3)contact us and send us the photos
4)confirm your address and then you can get a new one freely.
Purchasing Guide

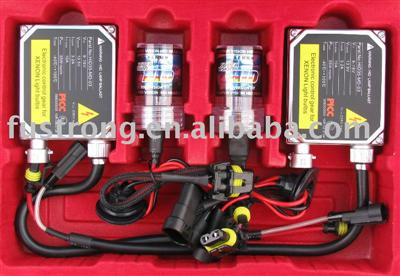

1. Components of 1kit:2 pcs ballasts & 2 pcs 35W bulbs,1 harness and related attachments. 2. Approval: ISO9001;2000;E-MARK,CE,SASO. 3. Available bulbs:Models: H1,H3,H7,H8, H9,H10,H4-1,H11,H12,H13-1, 9005,9006,9004-1, 9007-1, 880/ 881
4. Color Temperature:4,300K,5,000K,6,000K,8,000K,10,000K,12,000K,
15,000K etc. Special colors also are available but delivery time will be longer and price would be different. 5. Different packages are available. OEM package is only for big orders
Description:
German technique+Simens capacitance+Panasonic Discharge tube+18 months guarantee!
Technique P
HID BULB KIT
Description:
German technique+Simens capacitance+Panasonic Discharge tube+18 months guarantee!
Technique Parameters
Input Voltage Range: 8-32V DC(12v/24v)
p>
