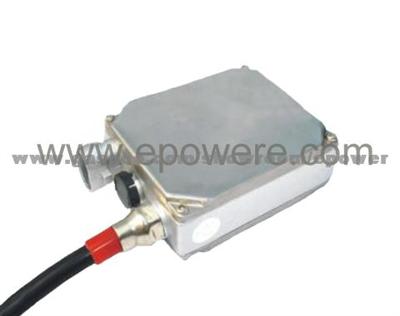

Style No.:EP-B005
Product size: 8.89×7.66×3.6cm
Carton size: 43.8×30.7×30.2cm 50pcs in one carton
Carton N.W/G.W: 25/26kg
Efficiency ---------------------------- >85%
Output power ------------------ 34w-36w
Restart voltage ---------------------- 8.7V
Working voltage --------------- 8.7v-18v
Max start electricity flux-- 6.0AI6.5A
Stable electricity ---------- 3.4AI3.7A
Bulb voitage -------------------------- 85V
Bulb flexible voltage ---------------- <5V
Bulb voltage wave form--------- square
Bulb working frequency -- 284Hz±10%
Max output electricity flux ------- <2.3A
Discharge protecting voltage -------- 400V
Lighting voltage --------------- 18KV23KV
Stability time -------------------------- <120S
Working temperature -------- -40105
Saving temperature ---------- -40150
Bulb Discharge protecting --------------- yes
Bulb short circuit protecting ------------- yes
Input mixed collect protecting ---------- yes
Input Low voltage protecting --------- 8.3V
Input High voltage protecting ---------- yes
Min output electricity flux ------------ <0.29A
