Quick Details

• Place of Origin:

  Shaanxi

• OE Experience:

  No

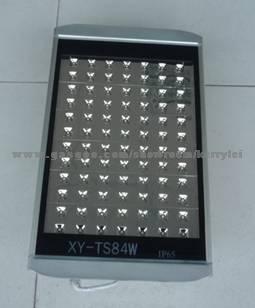

Product Name:Led Tunnel Lamp

Led Tunnel Lamp

Application

Tunnel Lighting

Product Description:

Product  style	PowerW	Installation
BS-TD-001A	70W	Adjustable bracket


Technical Parameters:
Light source: use import 1W high power high brightness LED
Input voltage: AC 100 to 240V
Electrical source: 50/60Hz
Power factor: > 0.95
Power Efficiency: >=85%
Work voltage: DC 50V
LED luminescent efficiency: >90lm/W
Luminous flux: 5670lm
Glaring efficiency:>88%
Color temperature: 4,000K to 5300K
Light Distribution CurveBeam/ BareSpot: Asymmetric(BAT wing)/ Rectangular bare spot
Uniformity of Illumination:<0.4
Maximum temperature rise:22 °
Thermostat:<75°
Protecting grade: IP65
Color Rendering Index:Ra>75
Working life: >50000 hours
Material : Aluminum-alloy  ⁺ tempered glass
Work tempreture:-35-50°C
LED Power Consumption:60W
Lamp power Consumption: 70W
Size:470mm*242mm*70mm
Applicability: tunnel double road both side main lighting.
