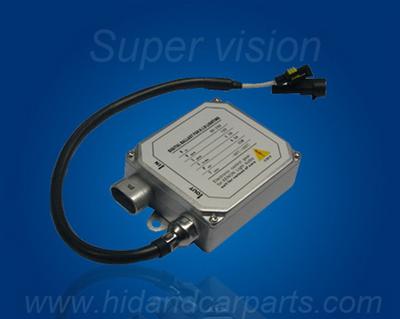

Detailed Description of the ballast
Intelligent power switch.
Automatic and dynamic ignition by high intensity.
Constant voltage power
Intelligently fit for all lamps
Lamp voltage monitoring
Optimization of the old bulbs working parameter
Water- Resistant: Up to DIN400500 legal standard
Anti- Dust: Up to SAE J575 legal standard
Shock- Resistant: Up to DIN40056 legal standard
Input voltage Range: 8- 18V
Operating Voltage: 13. 2V
Cool start current: ≤ 5. 4A, Reach 3. 5A in 4s, 3. 5A in stable state.
Cool start power: 48W
Hot start current: ≤ 3. 5A
Hot start power: 35W
Output voltage: ≤ 165V
Working current: 3. 5A ( 13. 2V In )
Power in stable state (normal): 35W - / + 1W Constant Power( saving 50%).
Operating temperature: - 40 to 105 degrees Celsius
Storage Temperature: - 40 to 105 degrees Celsius
Efficiency: > 85% With Input 13. 2V Condition
Output Frequency: 380Hz- 400Hz
Output load: One HID lamp of 35W
CE / E- 13 approval
Suitable for all automotive HID headlamps
Bulb type: H1, H3, H4, H4 (H/ L), H7, H8, H9, H10, H11, H13, 9004, 9005, 9006, 9007, 880, 881, Etc.
IGNITER
Trigger Output Voltage: 23KV Typical voltage, Instant voltage when lighting the lamp: 23kV
Protection
Output Open/ Short Protection: Automatic protection Shutdown in 0. 5 Sec.
High / Low voltage protection
Reverse connection / Overload / Open circuit / Short circuit protection
Shock / Water and dust- Resistant protection
Low voltage and power protecting the lamps
Quick and safe ignition, Internal voltage protection
Intelligent protection for power failure, Connection and short circuit
