Quick Details

• Voltage:

  9-16v

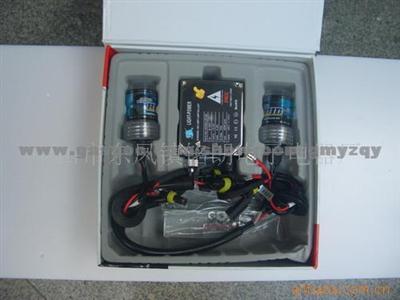

Product Name:Hid Convertion Kit

Hid Convertion Kit

Product Description:

SPECIFICATION FOR BALLAST

GENERAL
Operating Temperature : - 40℃ to +105℃
Steady State light Output: 3000± 200 lumens (up to bulb’ S type)
Turn on Light Output: 70% at 2 secs, 85% at 3 secs
Expected Ballast Life: 3000 hrs
Radiated EMI Susceptibility: S95/ 54/ EC
Radiated EMI Emissions: S95/ 54/ EC
Cooling: Air cooled
Output Wave Form: 125± 25 Hz square wave
Stesdy State Output Power: 35W
Open lamp Circuit Protection: Latch off after 1 second
Shot Circuit Protection: Latch off affer 1 second
Maximum Output Current: 9 A initial lamps on, 3. 2A next 2 secs
Striking voltage: 20k- 25kV

Electrical Input
Steady State Input Voltage: 9- 16V
Max in Rush Current: 9A at 50ms, 3. 2 A at 2secs
Decreasing to Steady state within 45 secs
Fixed Power Consumption: 35W
Input Turn On: 9 V and above
Input Turn Off: Below 8 V
Reverse Voltage Protection: No damage to ballast with – 40V
Conducted EMI Susceptibility: S95/ 54/ EC
Conducted EMI Emisson: S95/ 54/ EC
External Dimension: 86mmx73mmx30mm
Weight: ≈ 0. 41kg

Dongfeng Town Zhongshan City Minglang Electronic Factory is a professional factory specializing in Hid xenon kits. We are located in Dongfeng Town, Zhongshan City, Which is the famous production base of small home appliance and hardware accessories in China. Our main products are HID ballasts, ...[Read More]

Company Profile:

• Main Product:

  Hid Xenon Kits, Hid Ballast, Hid Xenon Lamp, Hid Xenon Bulb

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Asia, Mid East
