BLDC Motor Speed Controller
Yuyangking programmable sine-wave BLDC motor controller provides efficient, smooth and quiet controls for electric motorcycles, rickshaws, cars, golf carts, go-carts and other electric vehicles. Motor speed controller uses high power MOSFET, PWM to achieve efficiency 99% in most cases. Powerful microprocessor brings in comprehensive and precise control to BLDC motor controllers. This programmable brushless motor controller also allows users to set parameters, conduct tests, and obtain diagnostic information quickly and easily.
This is a high-power BLDC controller designed for the e-rickshaw,e-tricycle,e-motorcycle and and other DC powered electric vehicles,it can match with most of the Brushlesss DC motors,and offering various of controlling & protecting functions to different application as following:Functions: |
1). Manual cruise |
2). Auto cruise |
3). Hard/soft start selection |
4). 3 speed (50%-80%-100% or other volumes) |
5). EBS braking function/Regen braking |
6). Reverse |
7). Netural |
8). Forward/reverse selection |
9). Anti-thief |
10). Speed limiting |
11). Low voltage & over voltage protection |
12). Over heated protection |
13). Throttle error protection function when running |
14). Programmable by bluetooth |

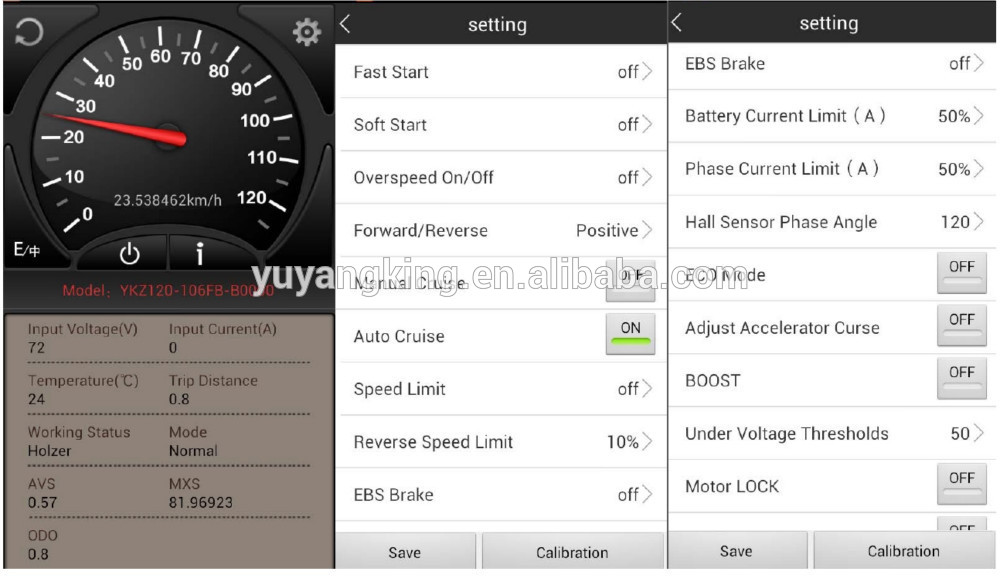

Besides,users are allowed to set the functions with our patented programing software via a smart phone.
All our controller specifications presenting the actual value,and provide a outstanding performance to your application. Application: Test Report: Wiring:
Features |
• Sine-wave controller applied to BLDC or PMSM |
• Using the intelligent MPU |
• Synchronous rectification, ultra low drop, fast PWM to achieve very high efficiency |
• Electronic reversing |
• Anti-interference and anti-shock performance |
• Hardware over current protection |
• Hardware over voltage protection |
• Configurable limit for motor current and battery current |
• Battery protection: shutdown at configurable high and low battery voltage |
• Rugged aluminum housing for maximum heat dissipation and harsh environment |
• Thermal protection: current cut back, warning and shutdown on high temperature |
• Configurable 60 degree or 120 degree hall position sensors |
• Up to 50,000 electric RPM standard.(Electric RPM = mechanical RPM * motor pole pairs) |
• Easy installation: 3-wire potentiometer will work |
• Parameters and functions can be set up by smart phone |
• User program provided. Easy to use |
General Specifications: |
• Power supply:120V,Max DC Current :250 A ,Max phase current:700A |
• Frequency of Operation: 15.6kHz |
• Standby power dissipation<30mA |
• 5V Sensor Supply Current: <30mA |
• Power voltage:24V-144V DC |
• Input current to controller power switch<200mA |
• Throttle Input: 0-5 Volts (3 wires resistive type),0.8-3.6v(hall type) |
• Brake and throttle signal input:0-5volts |
• Full Power Operating Temperature Range: 0?/span> to 80?/span> (controller temperature) |
• Operating Temperature Range: -30?/span> to 120?/span>, (controller temperature) |
• Peak current:120A-700A, as per mode |
• Battery current:17A-250A as per mode |
• Supported maximum speedd:50000RPM(with hall sensor) |
Packaging & Shipping
Standard exporting carton packing
1pc / 1 inner box , 10pcs / master carton
Company Information
YUYANG Technology Co.,Ltd is a professional BLDC motor controller manufacture in Zhejiang China.
Our company specialized in producing High-power controllers from 1KW ---10KW and high voltage up to 120V
Every month we supply thousands of controllers to some Chinese leading vehicle factories ,also we export all over the world.
For each of our customers,we provide them our patented & optimized driving program to make sure they get no troubles
when fixing the motor,besides,we also offer the function customization service for our customer's new designed vehicles.
