Quick Details

• Place of Origin:

  Taiwan

• Samples:

  Charge

• OE Experience:

  No

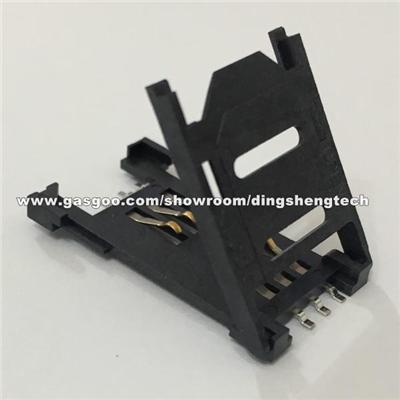

Product Name:Communication Module SIM Card Holder 6 Pin

Communication Module SIM Card Holder 6 Pin

Application

DS-tech

Product Description:

Material:

1. Body: PPS UL 94V-0 Rated, Color: Black

2. Cover: LCP UL 94V-0 Rated, Color: Black

3. Contact: Phosphor Bronze

4. Contact Plating: Gold Plating Over Nickel on Contact Area, Tin Plating on Solder Tail.

Spec:

1. Current Rating: 0.5 AMP. Max

2. Dielectric Withstanding Voltage: 500V AC R.M.S For One Minute

3. Insulation Resistance: 1000M Min. AT 500V AC

4. Contact Resistance: 30m Max.

5. Operating Temperature: -25 °C~ +85°C

6. Durability: 5000 Cycles

7. Processing Temp: 260°C for 30~60 Seconds Max


We also have GPS/GLONASS Module, GSM/3G Module, 4G/LTE Module, GPS mouse, GPS/GLONASS Antenna, GSM/3G Antenna, GPS/GSM Antenna, SIM Card Holder, RF Cable, RF Connector etc.

Ding Sheng is one of the manufacturer and agent in Taiwan for GPS, GSM, 3G and Bluetooth products . We can provide different kind of solution to suit for customer's request. Main Product: GPS module, GPS Engine Board,GSM Module, GPS / GSM Antenna, GPS Mouse ,GPS ...[Read More]
