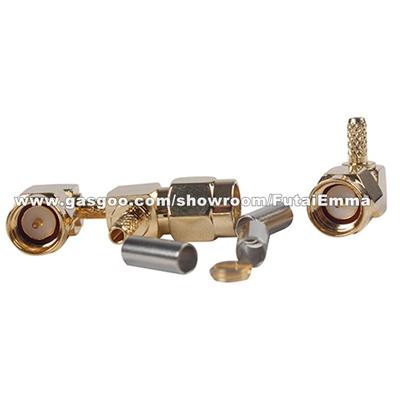

SMA Connector SMA RF Connector

    • Application: FUTAI
    • OEM No/Model: FT-SMA-JY1.5-G01
    • Market Type:After Market
    • FOB Price: USD 0.2-0.5
    • Payment Terms: L/C, T/T, Paypal
    • Samples: Charge
    • Minimum Order: 100Piece/Pieces

Quick Details

  • Color:

    other

  • Product Name:

    SMA connector

  • Application:

    RF

  • Plated:

    Gold plated

  • Insulator:

    PTFE

  • Gender:

    Female

  • Material:

    Brass

  • Sample:

    Welcome ask sample for testing

  • Website:

    www.futai8.com,www.gpsgf.com

  • Type:

    SMA

  • Pins:

    1P

  • Place of Origin:

    China

  • Samples:

    Charge

  • Sample Price:

    0.5 USD

  • Delivery Time:

    7

  • Packing:

    100 Pcs/Bag

  • Delivery Port:

    Foshan

  • Max. Production Capacity:

    100000 Pcs

  • Export Ratio:

    71% - 80%

  • OE Experience:

    No

Product Name:SMA Connector SMA RF Connector

SMA Connector SMA RF Connector

Application

FUTAI

Product Description:

OEM No/Model: FT-SMA-JY1.5-G01


Model

FT-SMA-KY1.5-G01

Major Technical Characteristics

Type

SMA-KY1.5-G01

Impedance

50

Frequency Range

DC~12.4GHz(Semi-Rigid Cable DC-18GHz)

Center conductor retention force

0.28 N

Insertion Loss

0.15dB/6GHz

Voltage Standing Wave Ratio

Straight  Flexible Cable  1.10+0.02f

Semi-Rigid Cable1.07+0.018f

Right angle Flexible Cable  1.20+0.03f

          Semi-Rigid Cable1.17+0.02f

Durability(mating)

500(cycles)

Cable

RG174 Cable

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
