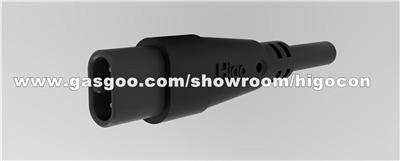

SIGNAL CONNECTOR MINI E 2PIN

    • Application: ebike
    • Market Type:After Market
    • Price: Inquiry For It?
    • Payment Terms: L/C, T/T
    • Minimum Order: 500Piece/Pieces

Quick Details

  • Place of Origin:

    China

  • Delivery Port:

    Shanghai

  • OE Experience:

    No

Product Name:SIGNAL CONNECTOR MINI E 2PIN

SIGNAL CONNECTOR MINI E 2PIN

Application

ebike

Product Description:



SIGNAL CONNECTOR MINI E 2PIN
Electrical Characteristics
Rated Voltage    48V AC/DC
Rated Current     2A
Withstanding Voltage     500V
Insulation Resistance      20M
Contact Resistance   10m
Mechanical Characteristics
Mating Type       Insertion Force 80N Max, Extraction Force 30N Min
Mating Cycles    200 Times
Performance
Operation Temperature   -25~+80
Protection Degree    IP66
Wires Specification
Max Outer Diameter9mm
Mating Length   55mm
Contact Material       Copper alloy plated with gold which conforms to military standard
Wire Section       0.14mm²/0.20mm²
Higo Signal Connector, Ebike Motor Connector, IP67 Battery Connector Manufacturer
Higo is a China manufacturer of splitter connector, Splitter Connector, IP67 Signal Connector, Dustproof Battery Connector, motor connector and battery connector, etc. Our products can be customized according to the customer's requirements, welcome to contact us.

SIGNAL CONNECTOR MINI E 2PIN

Electrical Characteristics

Rated Voltage    48V AC/DC

Rated Current     2A

Withstanding Voltage     500V

Insulation Resistance      20MΩ

Contact Resistance   10mΩ

Mechanical Characteristics

Mating Type       Insertion Force 80N Max, Extraction Force 30N Min

Mating Cycles    200 Times

Performance

Operation Temperature   -25~+80

Protection Degree    IP66

Wires Specification

Max Outer Diameter9mm

Mating Length   55mm

Contact Material       Copper alloy plated with gold which conforms to military standard

Wire Section       0.14mm²/0.20mm²

Higo Signal Connector, Ebike Motor Connector, IP67 Battery Connector Manufacturer

Higo is a China manufacturer of splitter connector, Splitter Connector, IP67 Signal Connector, Dustproof Battery Connector, motor connector and battery connector, etc. Our products can be customized according to the customer's requirements, welcome to contact us.
