Replace LEMO ECG Fixed Socket For Printed Circuit Boards, ODU GA Socket, ECG 0B/1B/2B/3B Circular Connector

    • Application: connectors
    • Market Type:After Market
    • FOB Price: USD 3
    • Payment Terms: T/T
    • Minimum Order: 5Piece/Pieces

Quick Details

  • Color:

    Silver

  • Connector type:

    socket female pin(printed circuit boards 90corner needle pin)

  • Number of positions:

    2-32 pin

  • Termination:

    printed board

  • Fastening type:

    Push-pull

  • Orientation:

    G(A...F)

  • Shell material:

    Brass

  • Shell finish:

    Chrome

  • Contact material:

    Brass

  • Contact finish-mating:

    Gold

  • Contact color:

    Gold

  • Insert material:

    PPS

  • Cable opening:

    1.5mm-11.7mm

  • Place of Origin:

    Shenzhen

  • Delivery Time:

    15 Days

  • Delivery Port:

    Shenzhen

  • Max. Production Capacity:

    20000 Piece/Mouth

  • OE Experience:

    No

Product Name:Replace LEMO ECG Fixed Socket For Printed Circuit Boards, ODU GA Socket, ECG 0B/1B/2B/3B Circular Connector

Replace LEMO ECG Fixed Socket For Printed Circuit Boards, ODU GA Socket, ECG 0B/1B/2B/3B Circular Connector

Application

connectors

Product Description:

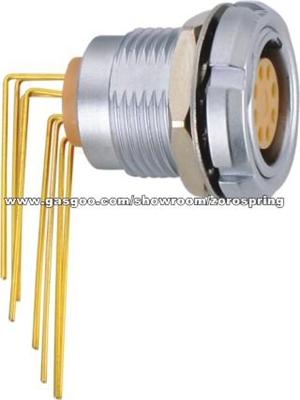

ZCG Fixed socket, with two nuts,locating pin G or locating pin(A...F),suitable for printed circuit boards 90°corner needle core (rear panel installation)

website:http://www.spring-connector.com/product/ZCG-corner-core-fixed-socket.html










 Main features:

  1. Quick push-pull self-locking system,(anti-slip design on the surface of the housing,sound prompting when self-locking).

  2. Soldering, crimping, printed board connector pins.

  3. Straight, 90°angled.

  4. Multiple positioning pin selection avoids intermixing between similar connectors.

  5. Fully shielded to prevent electromagnetic interference.

  6. Multicore2-32,High density installation saves space.

  7. Positioning pin system, G is standard positioning pin for connector alignment
Technical specification:

Pulling and irting times
>5000.
Humidity Maximum humidity up to 95% at a temperature of 60°
Temperature -45°~+125°
Vibration 10~20000HZ15g
Mechanical shock 100g·6ms
Salt spray corrosion tes >48h
Protection level IP50

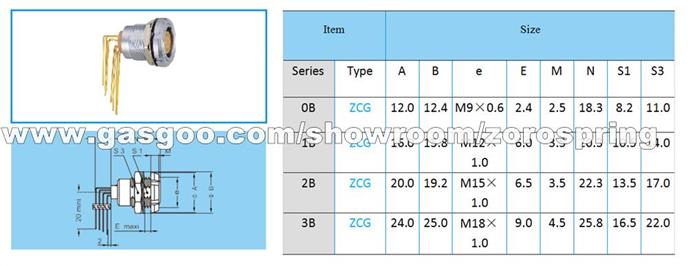

Product outline drawing

Construction:
