BLMT-35/150-13 Torque Terminal Bolt Type Terminal Connector

Typical Clients: CSC
Market Type:OE Market
FOB Price: USD 2
Payment Terms: L/C, T/T, CASH
Minimum Order: 1000PCS

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Voltage:
otherv
Material:
Aluminium Alloy
Color:
Yellow

Main Raw Material:
AL ALLOY

Product Name:BLMT-35/150-13 Torque Terminal Bolt Type Terminal Connector

BLMT-35/150-13 Torque Terminal Bolt Type Terminal Connector

Product Description:

Product description

1.Aluminum cable lug for power fitting.

2.Material: 99.5% purity Aluminum

3.Suitable treatment: Bright

4.It is suitable for connection of Aluminum conductor.

Mechanical connectors, lugs and repair sleeves are designed for use in low and medium voltage applications. Only three sizes cover conductor sizes from 25 mm2 to 400 mm2. All products consist of a tin-plated body, shear-head bolts and inserts for small conductor sizes. BodyConnector and lug bodies are made of a high-tensile, tin-plated aluminium alloy. The internal surfaces of the conductor holes are grooved. Connectors are chamfered at the edges and available with or without oil barrier (as blocked and unblocked types) depending on the appli cation requirements. Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes.

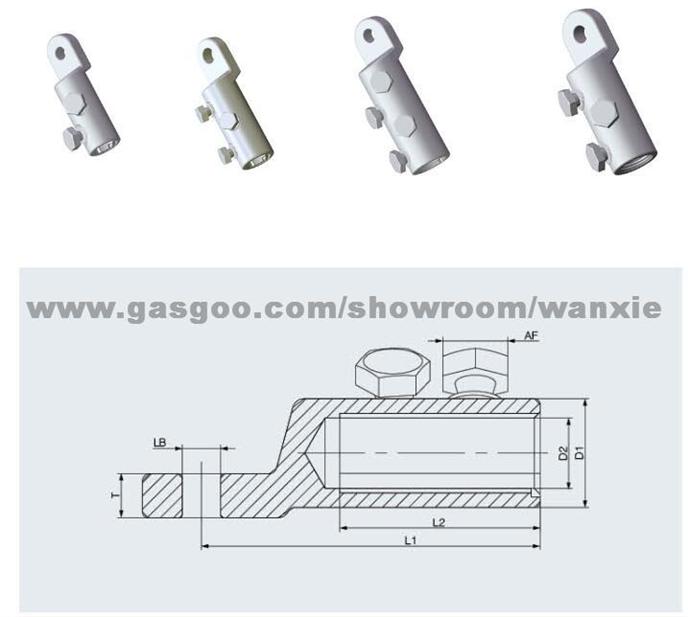

Catalog	Cross-sectional range mm2	Palm hole diameter(mm)	Dimensions(mm)				Head size
		Palm hole diameter(mm)	Dimensions(mm)				AF
		LB	L1	L2	D1	D2	mm
BLMT-25/95-13	25-95	13	60	30	24	12.8	13
BLMT-35/150-13	35-150	13	86	35	28	15.8

Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
