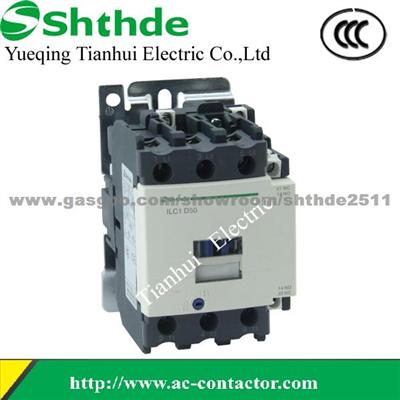

LC1-D Series Electrical Coil 380V AC Contactor LC1-D65 Ac Contactor

    • Application: Tianhui Electric
    • Market Type:After Market
    • FOB Price: RMB 1USD
    • Other Price Term: Agenda
    • Payment Terms: T/T
    • Samples: Charge
    • Minimum Order: 50Piece/Pieces

Quick Details

  • Color:

    White

  • Place of Origin:

    Chaoyang Industrial District Of Yueqing City, Zhejiang Province In China

  • Samples:

    Charge

  • Sample Price:

    1

  • Delivery Time:

    10days

  • Packing:

    1 X AC Contactor

  • Delivery Port:

    FOB Ningbo Or Shanghai

  • Max. Production Capacity:

    700000

  • Export Ratio:

    71% - 80%

  • OE Experience:

    No

Product Name:LC1-D Series Electrical Coil 380V AC Contactor LC1-D65 Ac Contactor

LC1-D Series Electrical Coil 380V AC Contactor LC1-D65 Ac Contactor

Application

Tianhui Electric

Product Description:

 New LC1-D65 Ac contactor
Application:

New Designed LC1 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50HZ or 60HZ, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.
Specification:


Model
Rated current  AC3 Ue 440V Rated power AC3    Three-phase motor 040°
220/240V 380/400V 415V 500V 600/690V 1000V
  A KW KW KW KW KW KW
LC1-D65 65 18.5 30 37 37 37 37
Number of the contact 3P+NO
3P+NC
Matched auxiliry contactor LADN02(2NC),LADN11(1NO+1NC),LADN20(2NO),LADN22(2NO+2NC)
LADN40(4NO),LADN04(4NC),LADN13(1NO+3NC),LADN31(3NO+1NC)
Matched time delay auxiliary contact Time delay after power on:LADT0(0.1-3s),LADT2(0.1-30s),LADT4(10-180s)
Time delay after power off:LADR0(0.1-3s),LADR2(0.1-30s),LADR4(10-180s)
External dimensions & Installation dimensions:

Type
Amax Bmax Cmax a b
LC1-D65 84 129 116 40±0.50 100±0.70/110±0.70 6.5
