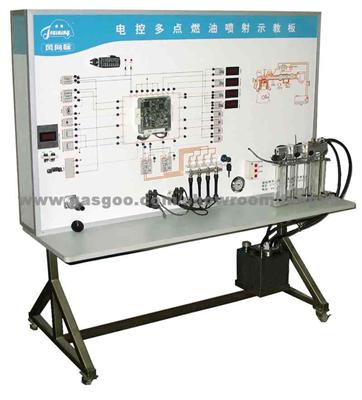

Product Name:Fuel Injection System for Volkswagen

Fuel Injection System for Volkswagen

Application

Volkswagen

Product Description:

OEM No/Model: FXB-B-3-A-Xxx
Product Instruction:
These parts are equipped with the real part of electrical fuel injection to demonstrate the framework and work process of the system. It has be function of setting and solving faults intelligently. Fit for junior senior vocational school, normal education school and training institution needs for teaching theory and service of the system. The Instruction board is easy and safe to operate with various functions.

Contain of structure:
ECM,fuel injectors,ignition Control Module,ignition switch,sparking plug,fuel pump,fuel tank,sequence injection,grouping injection,simultaneity injection,Fuel pump relay,crankshaft position sensor,move platform and so on.

Function character:
1. Real electrical fuel injection system and demonstrate the framework and work process of the system. Signal of running crankshaft position signal pulley to show 3 Injection ways by sequence injection,grouping injection,simultaneity injection.
2. On the panel of the running stage there was painted the circuit diagram and the diagram is protected with methacrylate and inlayed with aluminum. The learner can compare the diagram and the real to know and analyze the working theory of the controlling system, know and analyze the working theory of electrical fuel injection system
3. The testing platform is installed with testing Terminal, to test signals of sensor, actuator and engine controlling unit, e.g.: resistance, voltage, current ,frequency signals.
4. Instruction boards are jointed by steel material of high strength at the base with plastics painted on the surface. With truckle of lock, there is a table of 40cm at the base to store materials and light examining apparatus.
5. with instruction and related materials of Instruction Board.
6.(collocated) The platform was collocated with setting of intelligent faults, as the characteristics below:
A.It adopted the latest MCU technology, digital integrated circuits, with Color Liquid Crystal Display of 320*420 and it is easy to operate.
  B.It can set faults of cutting off the connection of any open circuit, line-to-ground short circuitand other faults in any point freely.
C.It can adjust setting of quantity and type of faults points according to usage requirement of the equipment.
D.Installed with communication port, and can be connected to computer to ensure to finish setting up faults and parameter and eliminating faults by using this software.
E.Installed with network port and can be connected with other faults setting equipment to form a network. The main controlling machine will control the functions of faults setting, fault solving, parameter setting, remoter start, information feedback and assessment
F.it is easy and convenient to update the software anytime to the latest version.


Technique parameter:
Panel dimension:1600mm*1000mm*200mm (length*height*width)
Stage dimension:1400mm*700mm*685mm (length*height*width)
Outer Power:220v alternative current
Working power:12v direct current
Working temperature:-4050
