Image for Single Stage Vacuum Insulating Oil Purifier

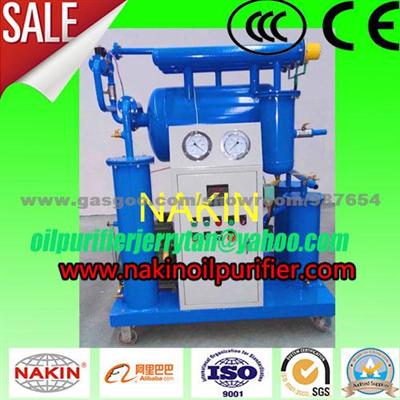

Single Stage Vacuum Insulating Oil Purifier

Application: Changan
OEM No/Model: Filter/Gauge
Market Type:After Market
FOB Price: USD 8500
Payment Terms: L/C, T/T
Samples: Not Available
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Material:
Steel,other
Thread Size:
100mm
Height:
500mm
G.W:
1000kg
Size:
500mm
Color:
White
Place of Origin:
Chongqing,China
Samples:
Not Available
Delivery Time:
10 Days
Packing:
Wooden Case
Delivery Port:
Shanghai
Max. Production Capacity:
200sets/Month
Export Ratio:
71% - 80%
OE Experience:
No

Product Name:Single Stage Vacuum Insulating Oil Purifier

Single Stage Vacuum Insulating Oil Purifier

Application

Changan

Product Description:

OEM No/Model: Filter/Gauge
Single Stage Vacuum Insulating Oil Purifier

Production Description:

Application:
Vacuum transformer oil purifier machine is popular in electric power industries, this machine mainly purify and recover old insulating oil, like the transformer oil, mutual inductor oil, cable oil, and switch oils. For the insulating oil, the trace water and gas badly effect insulating oil dielectric strength, it is a good job to remove the trace water and gas completely and effectively. Vacuum distillation way is best way to remove trace water and gas, the treated oil moisture can reach to 3 ppm, gas content is 0.01%. ZY single stage vacuum transformer oil purifier. It is low price, and good working performance. It is very good for middle/low grade transformer oil purifying working.Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.

Features:
1.Low cost and easy operation.
2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to decolorize (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.

Technical Parameters:

Index name	Unit	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow rate	L/H	600	1200	1800	3000	6000	9000	12000	18000
Working vacuum	MPa	-0.06 - -0.095
Working pressure	MPa	< 0.4
Temperature range	C	20 -80
Dielectric strength	KV	> 65
Water Content	ppm	< 5
Gas content	%	< 0.1
Particles size	mm	< 3
Power supplier		380v 50Hz,3Ph (As per user's option)
Working noise	dB(A)	65-85
Heating power	Kw	15	15	15	30	48	60	72	90
Total power	Kw	16.5	16.5	16.5	33.5	53	65	76	98

Company Introduction:

NAKIN Company is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.

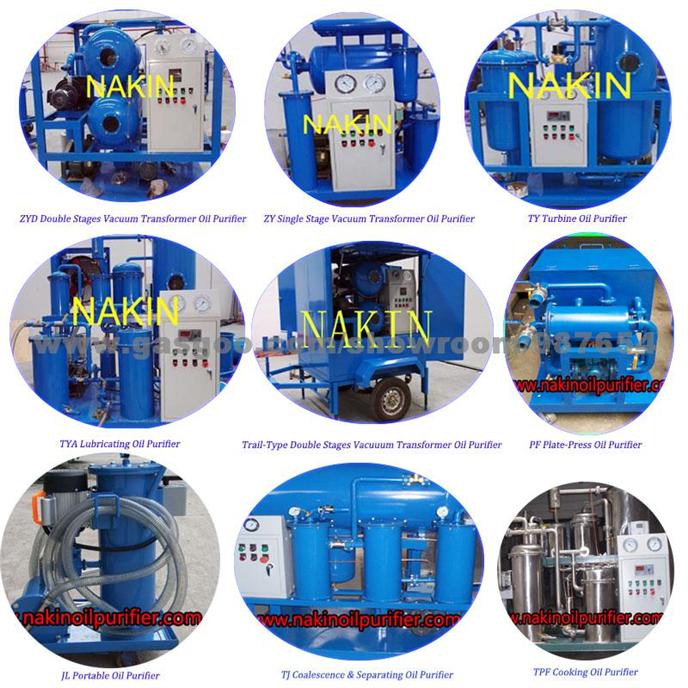

Product List:

JZC Vacuum Waste Oil Distillation Plant
