Quick Details

• Size:

  45mm,7.89mm-5/16"

• Color:

  Black

• G.W:

  6g

• Certification:

  ISO9001

• Type:

  Fuel coupling-male end piece

• Material:

  Plastic,PA12

• Gender:

  male

• Shape:

  Reducing,elbow(90 degree)

• Application:

  Fuel line

• Medium:

  Fuel & air & oil & oil vapours

• Car Make:

  General

• ID14:

  Fit for nylon tube and rubber hose

• barb end:

  ID6 (5/16")

• customized:

  available

• Brand:

  AlwayTec

• Place of Origin:

  China

• Samples:

  Free

• Delivery Time:

  Wthin 5days After Confirmed

• Packing:

  PP Bag & CTNS

• Delivery Port:

  NINGBO OR SHANGHAI

• Max. Production Capacity:

  5000pcs / Week

• Export Ratio:

  91% - 100%

• OE Experience:

  No

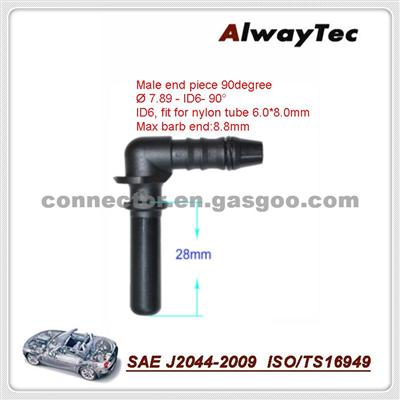

Product Name:SAE Fuel Line Coupling-Male End Piece

SAE Fuel Line Coupling-Male End Piece

Application

Product Description:

SAE Fuel Line Coupling-Male End Piece

SAE Coupling
Fuel line Coupling
SAE end piece
Male end peice



product description

Quick connector  introduction

SAE Quick connector is made up of body,in O-ring,out O-ring,spacer ring, securing ring and locking spring.when a mating tube end piece inserts the connectors,as locking spring has certain elasticity,Tie clip fastener to connect two connectors together and then pull back to assure a complete connection.So that the quick connector is a diffferene.Repair removal as long as the first advance the male connector and then press the latch.At both ends of the clip button,lock expansion,you can easily pull out the connector,before reconnect ,it should be relubricate with heavy oil SAE30 for long life purpose.

Standard materials

SAE connectors are made up of body, in O-ring, out O-ring,spacer ring,securing ring and locking spring.

Body: 12 with 20 - 50% glass fiber content.

O-ring:  NBR HNBR and FVMQ

Technical features

Standard:

SAE J2044,TS 16949;


Product advantages

· Fast assembly without tool -> time and cost reduction

· robot assembly possible  -> automated processes

· compact building method -> employment in extremely close  installation  conditions possible

· integrated seal - > optimal tightness

Applications in the automotive industry

Can be used to make both line-to-line or line-to-equipment connections.

· Fuel feed / return lines

· tank breathing
· Ventilation lines
· Oil cooler lines

· Vacuum control lines

Thanks for your attention. Waiting your further communication.
