OEM No/Model: 8481.80.9005

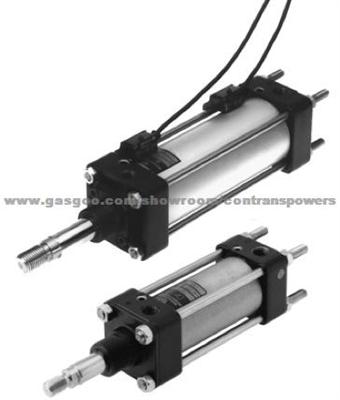

Standard Cylinder Non-magnet and Magnet Piston Double acting 1 1/4 inch to 14 inch (32 to 355 mm)
Ordering Information
To order a basic 2 inch bore cylinder with a
300 mm stroke without mounting brackets quote: RM/920/300
To order a basic 3 inch bore cylinder with a
400 mm stroke and central trunnion mounting style H (XV=125 mm) and piston rod clevis mounting style F quote: RM/930/400 with mountings M/P8637 (XV=125 mm) and QM/407 To order mounting brackets refer to appropriate cylinder mounting table.
Order magnetically operated switches separately.
Technical Data
Medium:
Compressed air, filtered, lubricated or non-lubricated
Operating:
RM/900 Double acting with adjustable cushioning RM/900/M Double acting with adjustable cushioning
and magnetic piston Operating Pressure:
2 to 10 bar Operating Temperature:
-20°C* to +80°C
*Consult our Technical Service for use below +2°C
Cylinder Diameters:
RM/900 1 1/4, 1 3/4, 2, 2 1/2, 3, 4, 5, 6, 8, 10, 12, 14 inch RM/900/M 1 1/4, 1 3/4, 2, 2 1/2, 3, 4 inch
Standard Strokes:
9125 50, 75, 100, 125, 150, 200, 300 mm 9175 bis 980 100, 150, 200, 300, 400, 500 mm
Non-standard Strokes: Available on request
Materials:
Stainless steel (Martensitic) piston rod and tie rods, anodised aluminium alloy barrel for 1 1/4 inch to 12 inch (14 inch steel), aluminium piston and end covers, brass bearing housings for 1 1/4 inch to 3 inch (4 inch to 14 inch alumini- um), nitrile rubber seals
Accessories
Switches QM/31, QM/32 Switch QM/132 Switches QM/33, QM/34 Switch QM/134 Servo-cylinders
Non-magnetic piston
See page
N 4.3.021.01
N 4.3.025.01 N 4.3.051.01 N 4.3.055.01 N 1.9.041.01
Magnetic piston
N 1.5.161.01
