OEM No/Model: HT-O-F

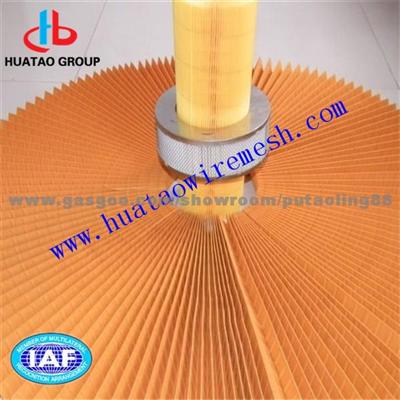

2.Oil Filter Paper
This oil filter paper can also be used as air filter paper.
Thickness Available: 0.35 - 0.7 mm
Basic Weight available: 100 - 170 g/sq.m
Production can be as your request.
Technical Data |
||||||||
HT- Oil Filter Paper | 01 | 02 | 03 | |||||
Basic Weight | g/sq.m | 120 ± 5 | 130 ± 5 | 140 ± 5 | ||||
Thickness | mm | 0.4 - 0.45 | 0.45 - 0.5 | 0.5 - 0.55 | ||||
Air Permeability | (P=200Pa) L/100cm²·min | 420 - 500 | 400 - 480 | 350 -450 | ||||
Corrugation Depth (if any) | mm | 0.20 - 0.28 | 0.20 - 0.28 | 0.20 - 0.28 | ||||
Bursting Strength | Kpa | 390 | 430 | 450 | ||||
Stiffness | mg | 3500 | 4000 | 4400 | ||||
Pore Size Max | µm | 95 | 90 | 85 | ||||
Resin Content | % | 17 - 22 | 17 -22 | 17 -22 | ||||
Note:All Color Available We can produce as your requested Technical Data. |
