Purpose: A typical environmentally- Friendly material, Which can absorb effectively the excess free particles during paint- Spraying and balance the pressure in the operating space.

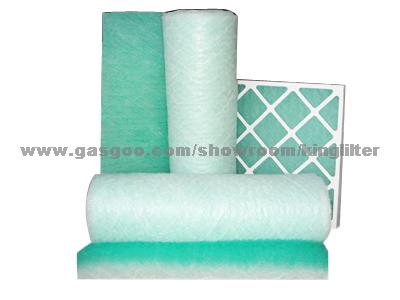

Introduction: It is a high- Arrestance paint- Stop filter made of high strenth glassfibre with gradual density, Inlet side is green, And outlet side is white. Low compressibility keeps its shape and makes fiber purified air effectively. It can absorb effectively the excess particles during paint- Spraying operation and reducing pollution to the environment, Makes the exhausted air more environmentally- Friendly and inner circulating air more cleaning. It's especially suitable for heat reclaimer, Widely applicable to automotive/ Furniture paint spray booth, Coating production line, Etc.
Model: LH- 260G
Specification: General stock in 75m, 0. 8m, 1m, 1. 25m and 2m, Optional lengths.
ITEM NAME |
Fiberglass Floor Filter |
Models: |
LH- 260G |
Weight: |
260g/ M2 |
Thickness: |
60mm |
Max air flow: |
4680m3/ S |
Min air pressure: |
12Pa |
Max air pressure: |
250Pa |
Filtering results: |
69. 40% |
Air speed: |
1. 30m/ Sec |
Dust holding capacity: |
3850g/ M2 |
Max temperature: |
250 º C |
Filtering grade: |
E2/ EU- 2 DIN24185 |
Fireproof level: |
F- 1 DIN53438 |
