Quick Details

• Color:

  Black

• Material:

  stainless steel

• Standard or Nonstandard:

  Standard

• Place of Origin:

  China

• OE Experience:

  No

Product Name:Deformed Parallel Groove Clamp and Insulation Cover

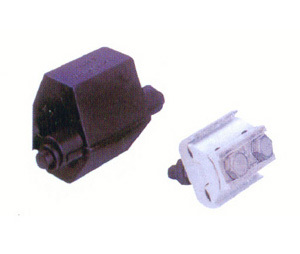

Deformed Parallel Groove Clamp and Insulation Cover

Application

Auto

Product Description:

Description
1) These connectors composed of: upper and lower body having
    two grooves to receive the conductors;  one, two, or three
    bolts passing through the bodies between the grooves
2) Concerning the JBL clamps, the bodies made in high
    strength aluminum alloy
3) About JBT clamps, bodies and pressure made out of red
    copper, bolts and washers out of high strength copper alloy
    (Cu, Si3, Mn) or steel
4) In bimetallic JBTL clamps, the body made out of a high
    strength aluminum alloy part linking to the other copper part
    by flash welding technology
5) Bolts and washers made out of different material: protected
    steel, achromatized steel, stainless steel, and hard copper
    alloy
Features and Benefits
1) Bodies in high strength alloy to provide long term life with
    conductor of the same material, no risk of failure when
    tightening done, and good corrosion withstand
2) Various kinds of bolts to allow to select the arrangement
    according the customer's request
4) Ridged grooves to improve mechanical and electrical behavior
5) Contact compound in the grooves to warranty a low electrical
    resistance and avoid corrosion at the contact points

Insulation cover:
1) Used to insulate connectors and protect tap connections
    from corrosive environments
2) Made of durable, weather-resistant black polypropylene
3) Double locking latches to provide secure cover installation
4) Flexible molded fingers at the end of covers conform to
    conductor and prevent foreign objects from contacting
    connector

Packing: Standard export packing

Application

1) Used to link a bare conductor on an overhead line of equal nature

2) Designed to connect two parallel conductors in order to do a derivation of a secondary conductor
