Quick Details

• OE Experience:

  No

Product Name:Prius Hybrid Anatomy Training Equipment

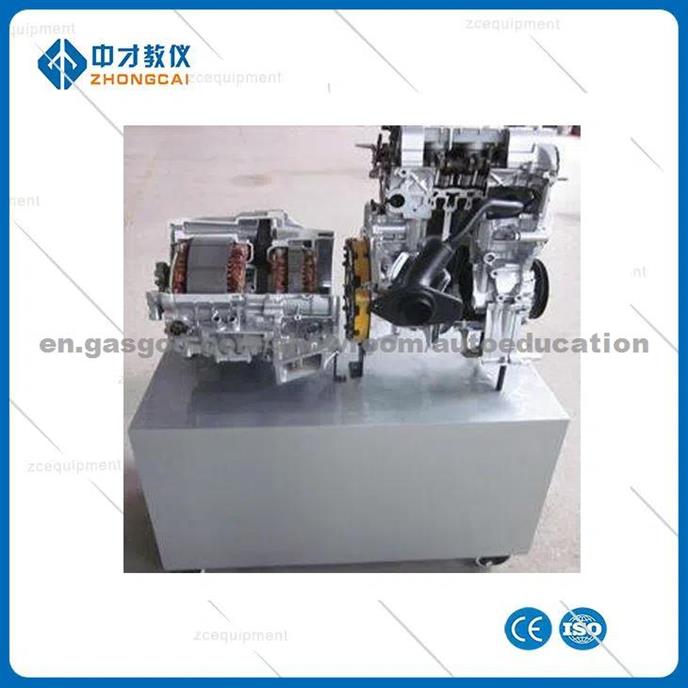

Prius Hybrid Anatomy Training Equipment

Application

Baolong, BMW

Product Description:

The Prius Hybrid anatomy training equipment of Technical parameters:

The size of the training platform: 1500×1000×1200 (l × W × H) L

Operating environment: temperature -5 ~ 40;Humidity 80% L

Engine type: Toyota Prius engine, L

Engine model: 1NZ-FXE L

Displacement: 1.5L, 77 horsepower L4 L

Year: 2010 model

Transmission: M1,M2 generator motor

2. The Prius Hybrid anatomy training equipment of Technical Composition:

Dissecting the processed engine assembly, transmission, M1, M2 motor, reduction motor, movable stand, operation instruction and experiment instruction.

3. Features:

(1) Use the original engine for profile processing, comprehensively display the engine crankshaft connecting rod mechanism, gas distribution mechanism, lubrication mechanism, cooling system, intake and exhaust system;

(2) The engine crankshaft is driven by the reduction motor to run at low speed to demonstrate the movement process of mechanical components inside the engine, so that the anatomical model can operate normally, demonstrate the rotation of crankshaft and camshaft, piston movement process, opening and closing of intake and exhaust valves, and timing mechanism;

(3) Suitable for the teaching of the working principle and mechanical structure of the automobile engine, directly show the working process of the engine, the operation of each component, as well as the structure and installation of each component;

(4) it is easy to clarify the mechanical structure and principle of the engine, and carry out actual combat training on the disassembly, maintenance and elimination of mechanical faults of the automobile engine, and provide a clear standard reference;

(5) all CNC wire cutting processing, section surface smooth;

(6) the use of different colors to distinguish gas, oil, water, convenient to distinguish a variety of systems, section surface using phosphating, paint and other processes, to ensure a bright color transition natural, strong paint is not easy to fade;

(7) Practical training projects: practical training on understanding of engine structure and principle, analysis of electric control components of gasoline engines, and practical training on static detection of gasoline engines.

(8) The Prius Hybrid anatomy training equipment of Technical is made of international standard aluminum alloy profiles, with the characteristics of light weight, high strength, corrosion resistance and long life, without spraying process, more environmental protection, more beautiful appearance and high-grade, the platform with self-locking casters, flexible movement, safe and reliable, durable.l

2.The Prius Hybrid anatomy training equipment of Technical Precautions for Use:

1. Before starting the system, pay attention to and inform the surrounding students that their heads, hands and clothes should not be close to the running parts to prevent unnecessary damage;

2. Do not touch the high-voltage connection parts to avoid electric shock injury.
