Quick Details

• Type:

  Diesel Engine

• No. of Cylinders:

  4 Cylinder

• Power:

  85KW/3600rpm

• Displacement:

  2.771

• Torque:

  285N.m/2000

• Model Number:

  4JB1-TC

• Compression ratio:

  17.2:1

• Type:

  in line, water cooling, common rail, supercharged intercooling

• Bore*stroke:

  93*102mm

• Delivery Time:

  30 days

• Packing:

  wooden box

• Delivery Port:

  shanghai

• OE Experience:

  No

Product Name:ENGINE 4JB1-TC diesel engine

ENGINE 4JB1-TC diesel engine

Application

all

Product Description:

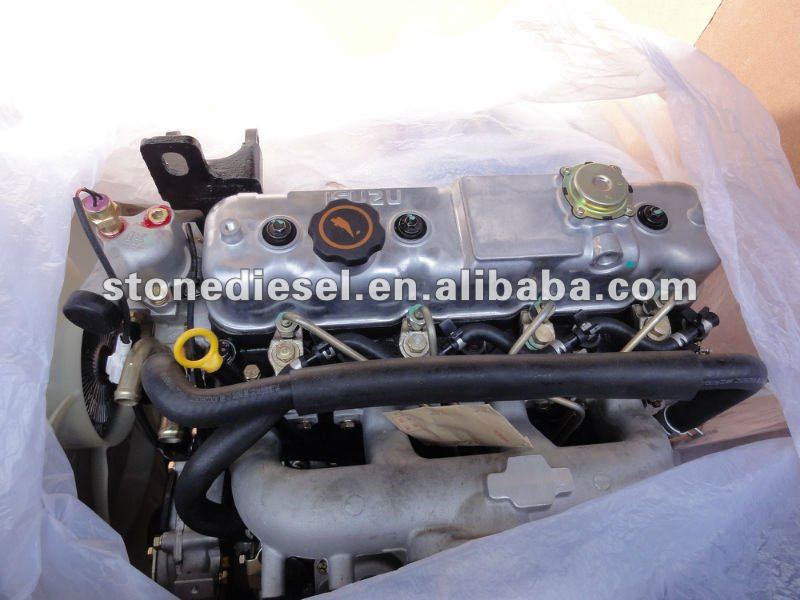

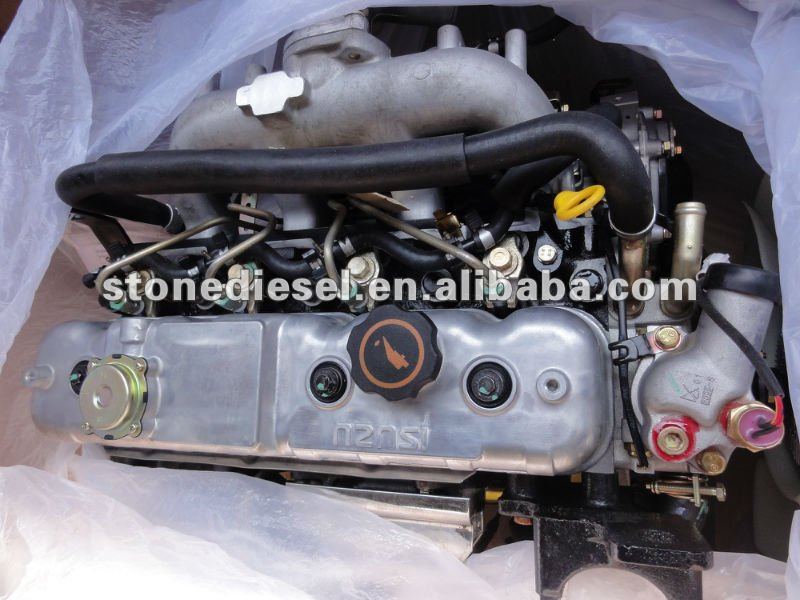

ISUZU ENGINE 4JB1-TC

4JB1Turbo Intercooler Engine Parameter

1. Specification:

Air induction:Turbo, Intercooler, Common Rail Direct Injection(CRDI)
Operation Layout: 4-Cycle Water Cooled, Direct Injection System
Number of Cylinders-Bore*Stroke:4-93mm×102mm
Size (L*W*H):742×634×718
Net Weight:250KG
Displacement:2.771cc
Compression Ratio:17.2
Fuel Supply:Director Injection
Lubrication:Forced feed type
Cooling type:Liquid Cooling
Starting type:Engaged Magnet Type
Stopping type: Fuel Cut-off by Stop Motor

2. Performance:

Rated Output Power:85kw/3600 RPM
Max Torque:285N.m/2100Rpm
Idle Speed:750RPM
Max Racing: 4100RPM
Fuel Consumption:215g/kwh
Cold Starting:-25°C
Temp of Exhaust Gas:< 600°C
Noise: Max 100dB With JIS a Characteristics
