Quick Details

• Input Power:

  3.0KW

• Production Efficiency:

  250 bottle/min

• Place of Origin:

  China

• Samples:

  Not Available

• Delivery Time:

  5-10 Days After Your Payment

• Packing:

  Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement

• Delivery Port:

  Qingdao,Ningbo,Shanghai,Shenzhen

• Max. Production Capacity:

  1000sets

• OE Experience:

  No

Product Name:SPC-250B Shrink Label Machine

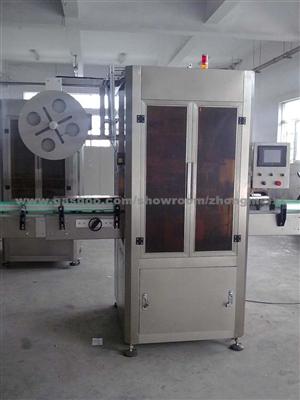

SPC-250B Shrink Label Machine

Application

china coal

Product Description:

chinacoal12
m.chinacoalintl.com SPC-250B Shrink Label Machine Features
    1. All-cover type stainless steel host machine: the whole machine is waterproof as well as rustless.
    2. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life.
    3. Single positioning centre guide pillar: a more stable for label delivery.
    4. Synchronous bottle divider: a more stable transmission for bottle.
    5. Bottom set of label brush: a more precision for casting label.
    6. Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
    7. Push-button control cabinet: a more humanized operation.
    8. Independent feeding material shelf: the position of the material shelf is optional at will.
Configuration Specification
    It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; besides, it adopts the positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types
    Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
Technique Parameter

Input Power	3.0KW
Input Voltage	3, 380/220VAC
Production Efficiency	250 bottle/min
Size of Host Machine	2100L*850W*2000H
Applicable Diameter of Bottle Body	28 mm-125mm
Applicable Length of Label	30 mm250mm
Applicable Thickness of Label	0.03 mm0.13 mm
Applicable Internal Diameter of Paper Tube	510adjust it at will
