Quick Details

• Place of Origin:

  CHINA

• Samples:

  Free

• Delivery Time:

  Within 52 Days After Receipt Of Down Payment

• Delivery Port:

  Ningbo,Shanghai

• Max. Production Capacity:

  60,000,000 Pcs

• Export Ratio:

  31% - 40%

• OE Experience:

  No

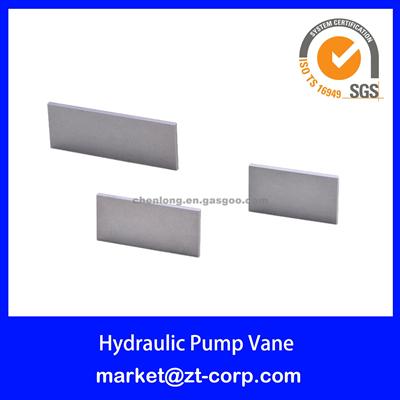

Product Name:Hydraulic Pump Vane China Supplier

Hydraulic Pump Vane China Supplier

Application

For import & domestic cars and mobile,light & medium duty trucks. Dehumidifier Vane Automotive Vanes(Vane for Power Steering Pump,Fuel Injection Pump Vane,Vane for Engine Oil Pump,Vane for Engine Camshaft Phaser); Hydraulic Vanes(Pump Vane,Motor Vane,Marine Motor Vane,V&VQ Series Intra Vane,Denison Hollow Vane,Yuken Vane,Atos Vane); Compressor Vanes(Rotary Compressor Vane,Dehumidifier Vane,Daikin Support Body); Other Hydraulic Pump & Motor Accessories.

Product Description:

Hydraulic Pump Vane China Supplier
1.Material: SKH51, M2, High Speed Steel;
2.Hardness: HRC 60°~65°;
3.Precision: 0.003~0.005mm or custom-made is acceptable;
4.Surface Roughness: Ra<0.2.

Description
Thickness	Width	Length	Radius
1.425	8.780	21.945	+R2.0
1.425	8.550	26.940	+R1.8
1.600	9.000	12.000	+R0.9
1.600	8.450	20.000	+R0.9
1.600	9.650	22.000	+R0.9
1.615	8.230	19.980	1side:2*Chamfer40°
1.685	10.200	15.520	+R1.8
1.685	10.200	21.925	+R2.0
1.685	10.200	26.999	+R2.0
1.685	10.200	30.450	+R2.0
1.800	8.000	22.000	-R1.5
1.800	9.500	30.000	-R1.5
......

Chenlong Group is the largest vane manufacturer in China, which located in Zhejiang, Huzhen. We do offer various kinds of vanes, with an annual output around 60,000,000 pcs. Our vane products include Power Steering Pump Vane, Vane for Engine Camshaft Phaser, Fuel Injection Pump Vane, Vane for ...[Read More]

Company Profile:

• Main Product:

  Engine Oil Pump Vane, Vanes for Camshaft Adjustment Systems , Power Steering Pump Vane , Fuel Injection Pump Vane and so on

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania

• Total Annual Sales:

  USD 10,000,001 - 50,000,000

Factory Profile:

• Number of Employees:

  1000 - 1500 People

• Shift:

  2

• Size of Factory In Square Meters:

  25,000

• Years of OEM Experiences:

  20

• Certification:

  TS16949, ISO 9001

• Equipment Name:

  Double Side Profile-lapping Machine, Double Side Flat-Lapping Machine, Nitriding furnace, Heat treatment vacuum furnace, High Efficiency CNC Profile Grinder

Research & Development:

• Capability for Synchronized Development:

  Develop according to drawing or samples provided by clients?Yes

  Develop 3-D model and prototype according to client's needs?Yes

• Source of Tooling:

  Made Internally, Outsourcing
