Image for Hot Sell Concrete Pump And Mixer Oil Pump

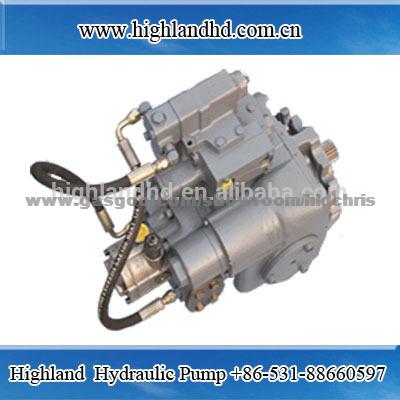

Hot Sell Concrete Pump And Mixer Oil Pump

    • Application: Concrete mixers, mining m...
    • Market Type:After Market
    • FOB Price: USD 1000
    • Payment Terms: T/T
    • Samples: Not Available
    • Minimum Order: 1Set/Sets
Contact Supplier no sign-up required

Quick Details

  • G.W:

    45kg

  • Max Pressure:

    350bar

  • Speed Range:

    500-3590r/min

  • Displacement:

    33.3ml/r

  • Place of Origin:

    China

  • Samples:

    Not Available

  • Delivery Time:

    Witnin 15 Days After Payment

  • Packing:

    Wooden Case

  • Delivery Port:

    Qingdao

  • Max. Production Capacity:

    1200pieces/Year

  • Export Ratio:

    31% - 40%

  • OE Experience:

    No

Product Name:Hot Sell Concrete Pump And Mixer Oil Pump

Hot Sell Concrete Pump And Mixer Oil Pump

Application

Concrete mixers, mining machinery, vehicles, industrial, road rollers, pavers,

Product Description:

hot sell concrete pump and mixer oil pump


Technical Spec.for Hydraulic Pump
Parameter Units Specification
Model No.   PV20 PV21 PV22 PV23
Max.displacement ml/r 33.3 51.6 69.8 89
Max.flow l/min 119.54 180.6 196.14 230.51
Charge pump displacement ml/r 12.3 16.2 18.03 18.03
Max.pressure Mpa 35
Rated pressure Mpa 21
Max.control pressure Mpa 3.5
Charge pressure Mpa 0.8-2.0
Max.case pressure Mpa Constant0.25 Peak value0.5
Max.speed r/min 3590 3500 2810 2590
Min.speed r/min 500
Rated speed r/min 1500
Dynamic viscosity range of the operating fluid
 Start
Operating
Optimum condition
1000
12-600
25-35
Operating fluid   Mineral oil
operating Temperature   -40  to  +50
Max.operating temperature
of the oil tank		   80
Filtering precision of
the operating fluid		  μm 10
Shaft direction   clockwise/anti-clockwise
Max.tilt angle of yhe swash    º ±18
Weight KG 45 53 63 78

According to the modelsView More
