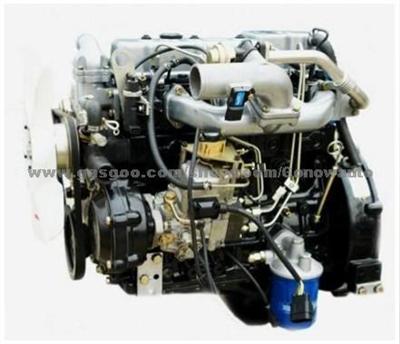

Product Name:GA 4D28 Engine

GA 4D28 Engine

Application

BYD, Changan, Dongfeng, Gonow, Great wall, Hafei, Huanghai Auto, Jinbei, JMC, JAC, Wuling, Zhongxing

Product Description:

GA 4D28 Engine



engine model GA4D28TC
brand   GONOW
fuel type  Diesel
firing method  compression ignition type
fuel supply method  Hi-pressure common rail
intake method  super-charging
cooling method  water cooling
() combustion chamber structure for compression ignition type   direct injection type
arrangement of cylinder  in-line
No. of cylinder     4
firing order    1-3-4-2
cylinder distance(mm)   106
intake valve  No. 4
exhaust valve No. 4
displacement(L)    2.771
compression ratio 17.21
cylinder bore(mm)  93
stroke (mm) 102
rated power(kW)   70
rated speed (rpm)  3600
fuel supply/stroke at rated speed (3) 49
idling speed(rpm)   800±30
Max. torque (N.m) 225
Max. torque speed  (rpm)  1600-2600
fuel supply/stroke at Max. torque speed (3) 52
Max. net power (kW)    65
Max. intake resistance(rated speed,100% loading) 7kPa
Max. exhaust back pressure(rated speed,100% loading) 50kPa
parts allowable absorption of Max.power driven by engine
injection nozzle  type/manufacturer   CP1H  Bosch
injector  type/ manufacturer  CRS2.0 Bosch
Mpainjector injection pressure  145
