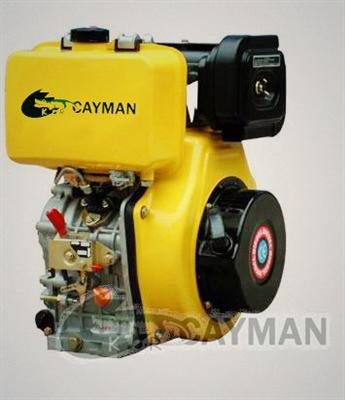

Diesel Engine
Features
Direct injection combustion system.
Efficient air cleaner system.
Low noise level and stability.
Compact in structure and small in size.
Multi-choice PTO shafts.
Recoil starter and electric starter.
ModelKR170FAEngine TypeSingle-cylinder, 4-stroke, Air-cooled, Diesel EngineCombustion SystemDirect injectionBore x Stroke (mm)70x57Displacement (cc)219Max. Power Output (hp/rpm)4.7/3600Cont. Power Output (hp/rpm)4.0 /3600Fuel Consumption (g/hp.h)220Lubrication oilSAE 10W/30Lubrication oil Volume (L)0.8Lubrication SystemForced Lubrication Via Trochoids PumpCooling SystemForced-airStarting SystemRecoil/Electric starterGovernor SystemAll-speed Type, Mechanical GovernorFuel Tank Capacity (L)2.4Noise Level at 7m (dB)93Dry Weight (recoil) (kg)29Dry Weight (electric) (kg)34Dimension (mm)427x380x46220ft Container Qty41040ft Container Qty855
